DF Robot 7" TFT DSI 800x480 Touchscreen Raspberry Pi 3 A+ Housing - 3D Printable - STL Files

DF Robot 7″ TFT DSI 800×480 touchscreen Raspberry Pi 3 A+ housing - 3D printable - STL files

4,69 €

No VAT statement, as small business owner according to §19 (1) UStG.

Categories: ,

Description

Give your DF Robot 7″ TFT DSI 800×480 touchscreen display a professional and aesthetic look with our 3D printed housing.

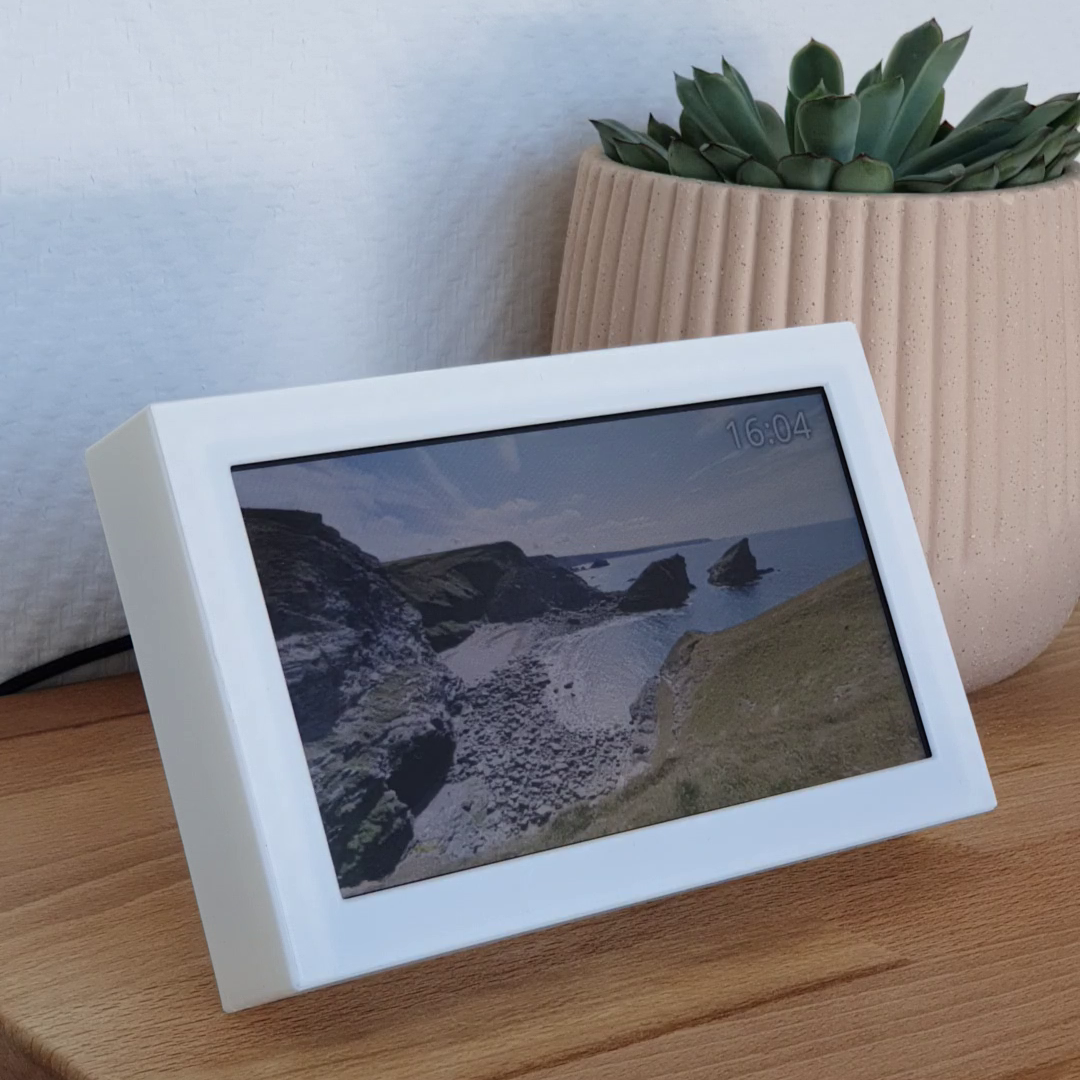

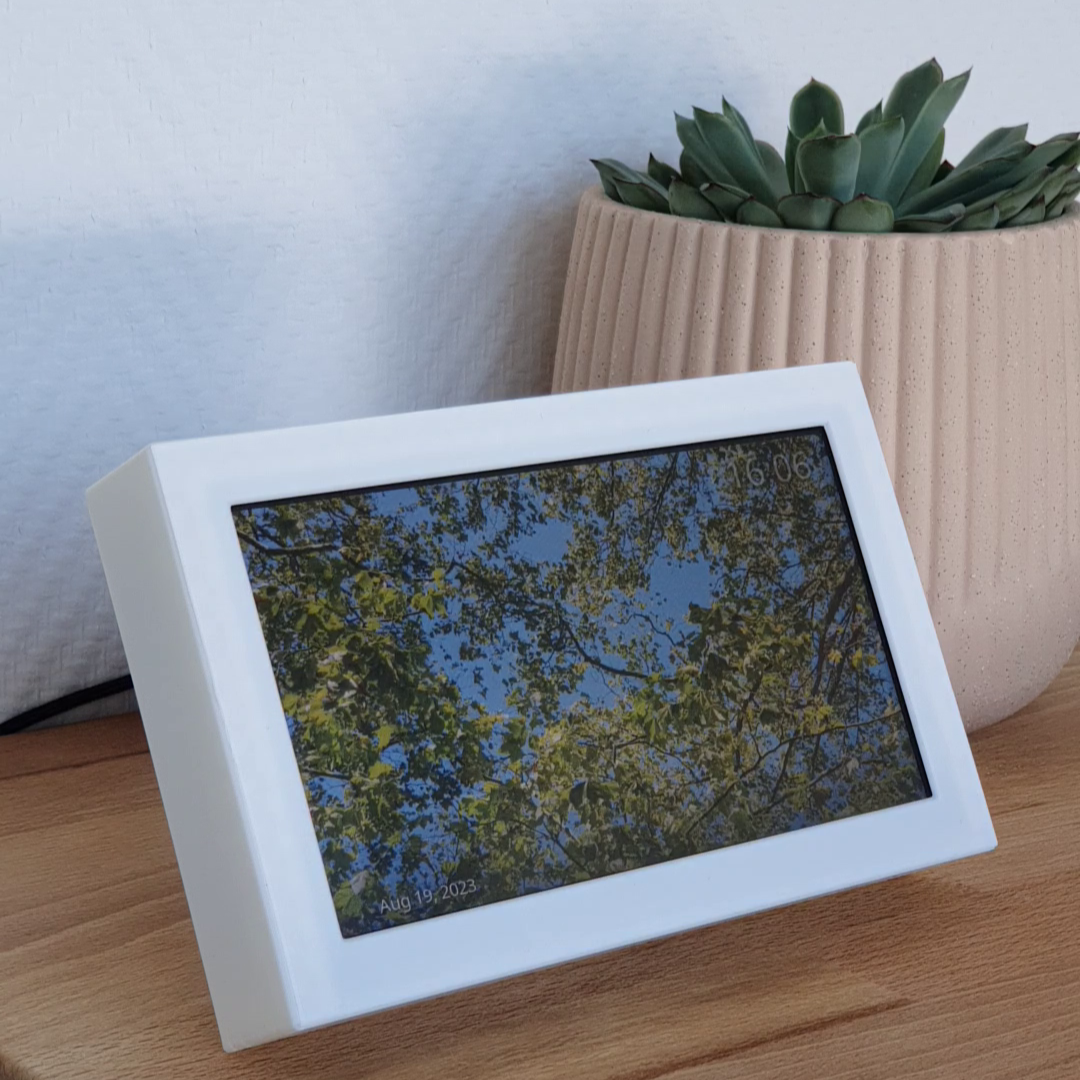

Start your DIY project today and design your own digital picture frame or other creative applications! Give your DF Robot 7″ TFT DSI 800×480 touchscreen display a home with our customized case, designed for the RaspberryPi 3A+.

Case features:

  • Precise fit: Our carefully designed STL files enable the touchscreen to be integrated into the housing with a perfect fit.
  • Creative design: The housing offers space for creative projects, whether as a digital picture frame or for other applications that benefit from the touch function of the display.
  • Simple assembly: With clear instructions and mounting material, installing the display in our housing is simple and straightforward.

Please note: No physical components will be sent. You will receive the files in STL format and must print them out on a 3D printer in order to build the project.

This offer contains the STL files you need to print the 3D printable components for the DF Robot 7″ TFT DSI 800×480 Touch screen Housing required.

  • You will soon find further information on the assembly and other components required in the assembly article. It will be linked here as soon as it is published.
  • Observe the safety instructions linked below during assembly and use: Click here

Additional components are required to build the complete project. A complete list of the required parts can be found here

Required tool:

Number Link
1x Screwdriver set  Buy at Amazon
1x Soldering iron  Buy at Amazon

Required material:

Number Link

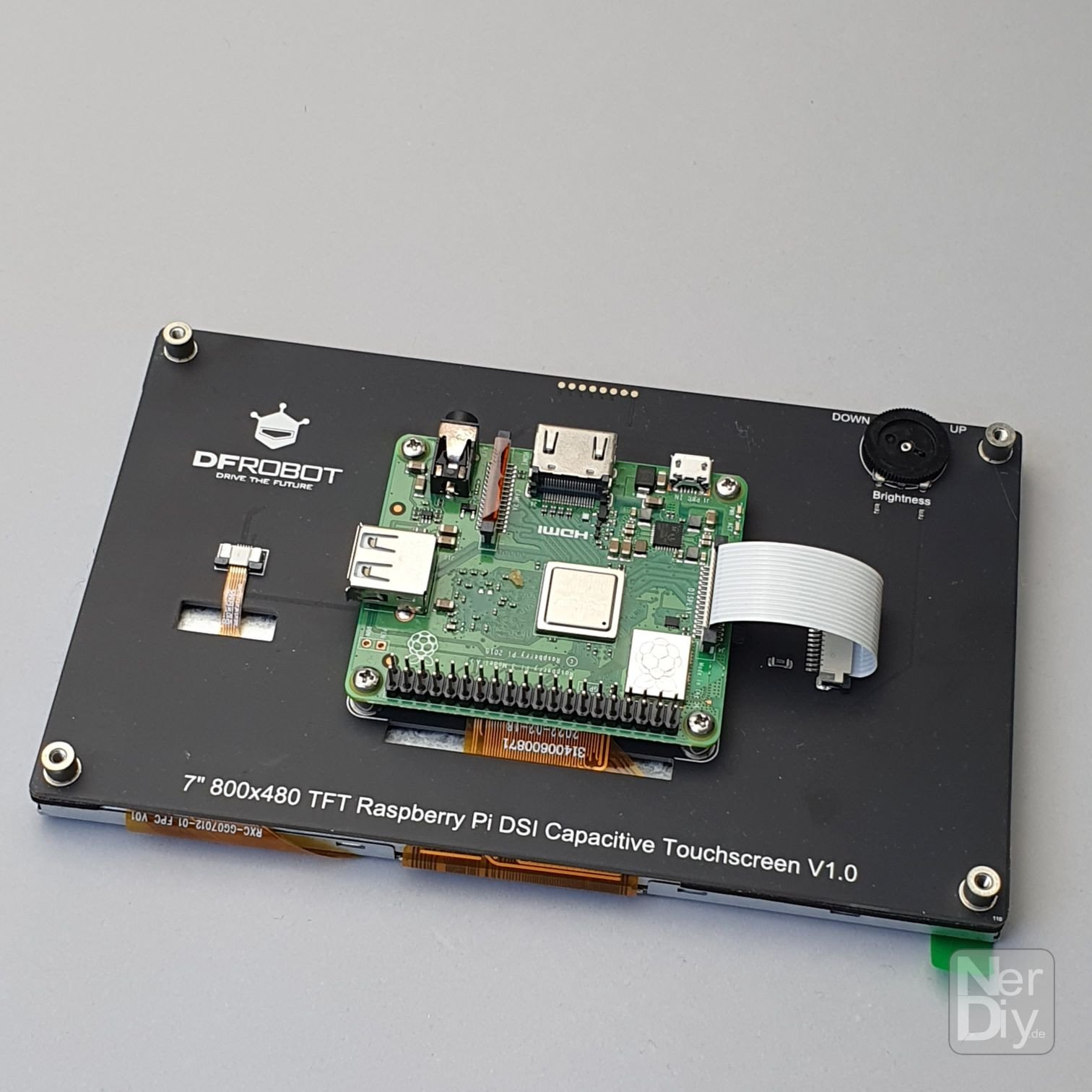

1x  7" 800×480 TFT DSI Capacitive Touchscreen: https://www.dfrobot.com/product-2193.html
1x Raspberry Pi 3A+  Buy at Amazon
1x Raspberry Pi power supply  Buy at Amazon
1x Micro SD card 64GB  Buy at Amazon
1x M2 thread insert  Buy at Amazon
1x M2x8 countersunk screw  Buy at Amazon
1x M2.5x16 countersunk head screw  Buy at Amazon

Gallery

Videos

Dimensions

Below you can see an overview of the usual dimensions of the product. If dimensions are missing, please let us know contact form let us know and we will add this later.

File list

  • 7inch_frame_base_rasp_a_X.stl
  • 7inch_frame_lid_stand_base_X.stl
  • 7inch_frame_lid_stand_blade_X.stl
