NEO7MV2 GPS receiver module housing - 3D printable - STL files

2,99 €

No VAT statement, as small business owner according to §19 (1) UStG.

Category:

Description

Welcome to our innovative housing for the NEO7MV2 GPS module! With these STL files it is possible to 3D print a high-quality housing for your GPS module and to mount the module (for example) on a continuous cast aluminum profile. All you need are two M5 screws.

Properties:

  • Robust and splash-proof: The housing protects your NEO-7M V2 GPS module from splash water and other environmental influences, ensuring reliable use in various environments.
  • A perfect fit for your module: The design of the housing is specially tailored to the NEO-7M V2 GPS module to ensure a perfect fit and optimum functionality. However, alternative modules with the same dimensions can also be fitted.
  • Simple assembly: Thanks to the M12x1.5 cable gland, the connection cable can be inserted in a watertight manner. The housing can be mounted with M5 screws (for example) on the popular 2020 continuous cast aluminum profile.
  • Versatile application possibilities: Ideal for use in outdoor and industrial environments as well as in other applications that require splash-proof mounting of the GPS module.

Please note: No physical components will be sent. You will receive the files in STL format and must print them out on a 3D printer in order to build the project.

This offer contains the STL files you need to print the 3D printable components for the NEO7MV2 GPS receiver module housing required.

  • You will soon find further information on the assembly and other components required in the assembly article. It will be linked here as soon as it is published.
  • Observe the safety instructions linked below during assembly and use: Click here

Additional components are required to build the complete project. A complete list of the required parts can be found here

Required tool:

Number Link
1x Screwdriver set  Buy at Amazon
1x Soldering iron  Buy at Amazon
1x M12x1.5 tap  Buy at Amazon

Required material:

Number Link
1x NEO7MV2 GPS receiver module  Buy at Amazon
1x M12x1.5 cable gland  Buy at Amazon
4x M3 thread insert  Buy at Amazon
4x M3x8 countersunk head screw  Buy at Amazon
4x M2 thread insert  Buy at Amazon
4x M2x8 countersunk screw  Buy at Amazon
2m Cable 6 wire 0.25mm²  Buy at Amazon

Gallery



Videos

No videos are available yet.

Dimensions

Below you can see an overview of the usual dimensions of the product. If dimensions are missing, please let us know contact form let us know and we will add this later.

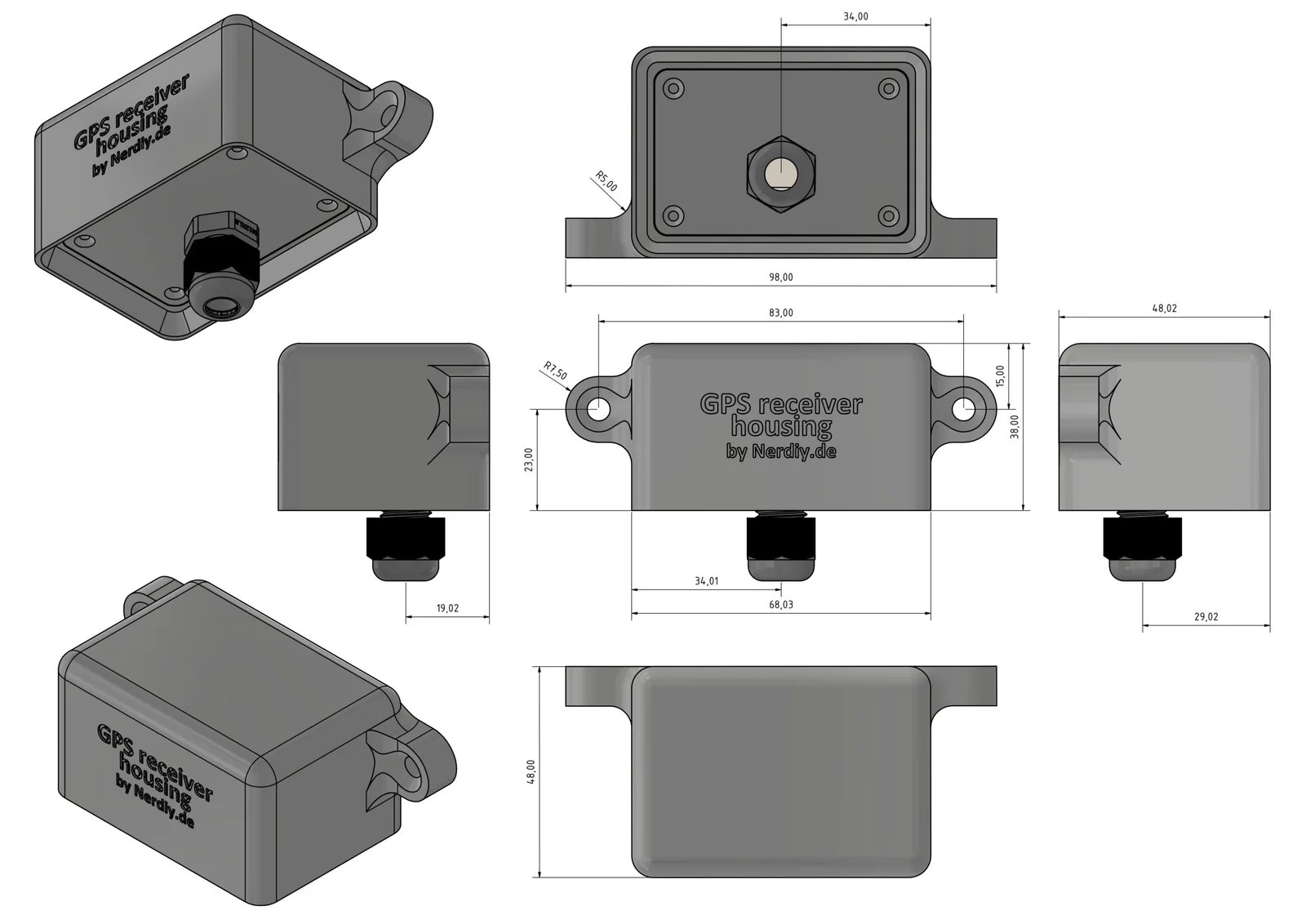

Overview of the dimensions of the housing.

File list

  • gps_receiver_housing_base_X.stl
  • gps_receiver_housing_cap_X.stl
