RaspberryPi 5 & Pineberry Pi BM1L NVME Case – 3D Printable – STL Files


Categories: ,

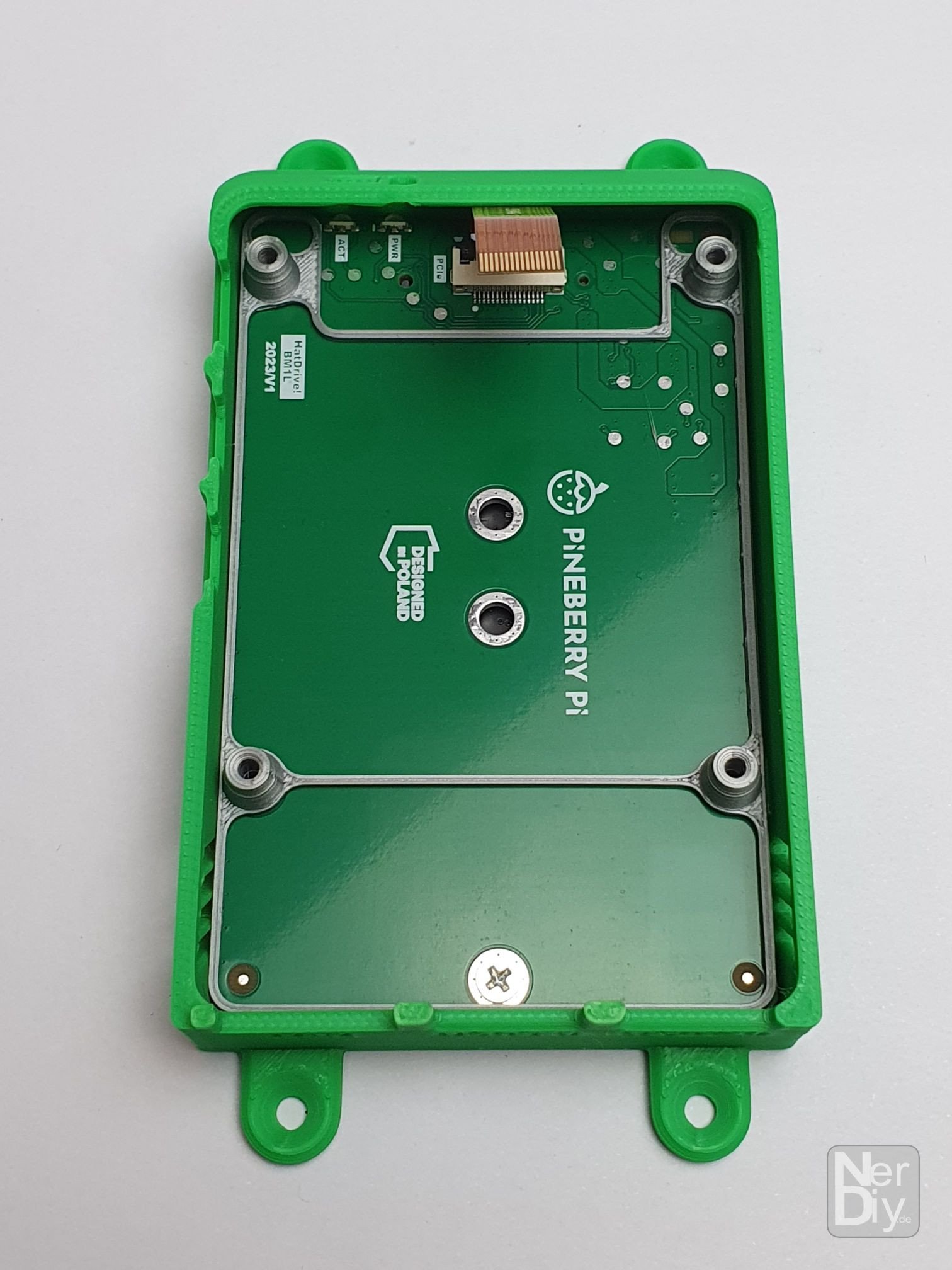

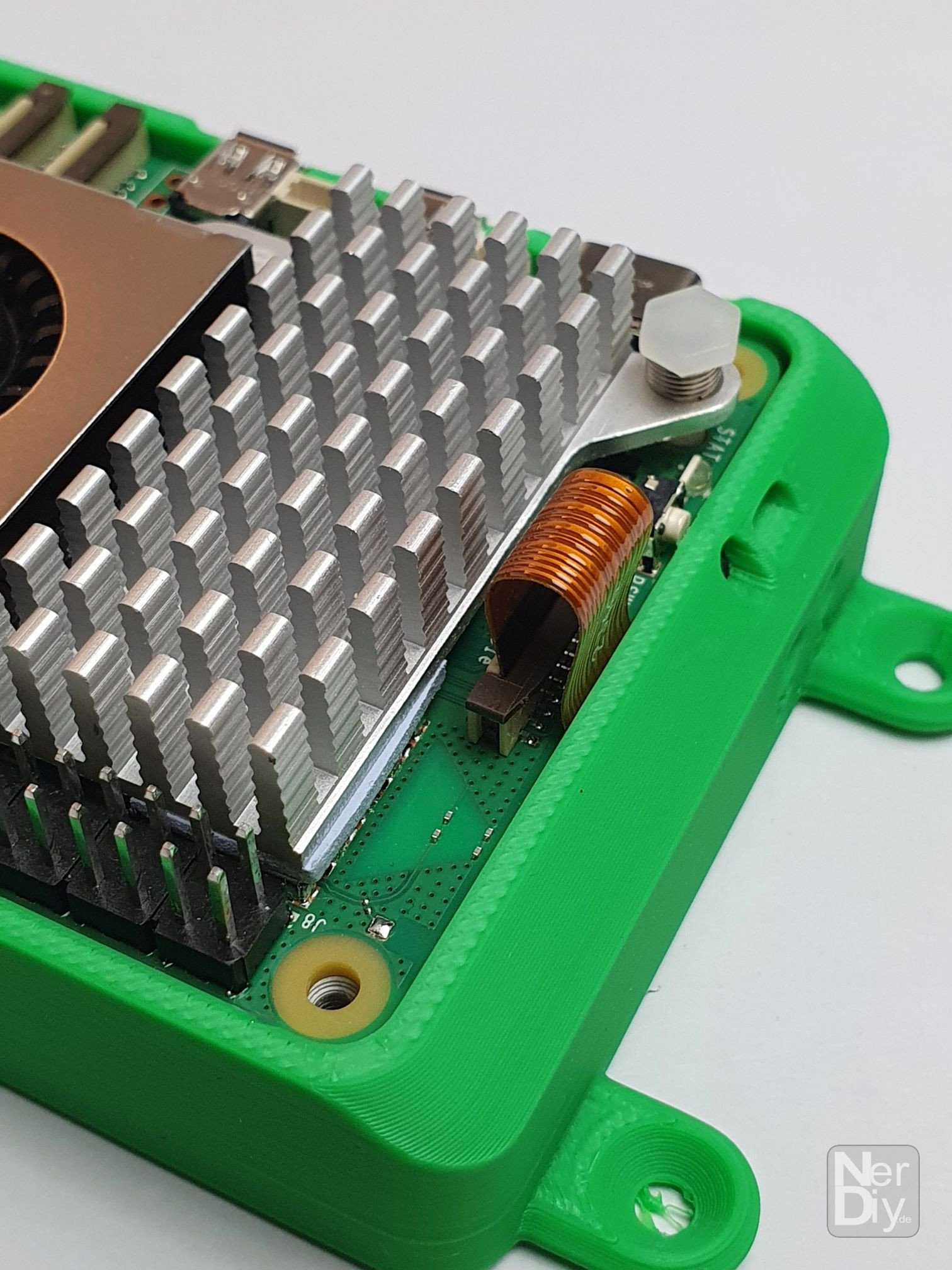

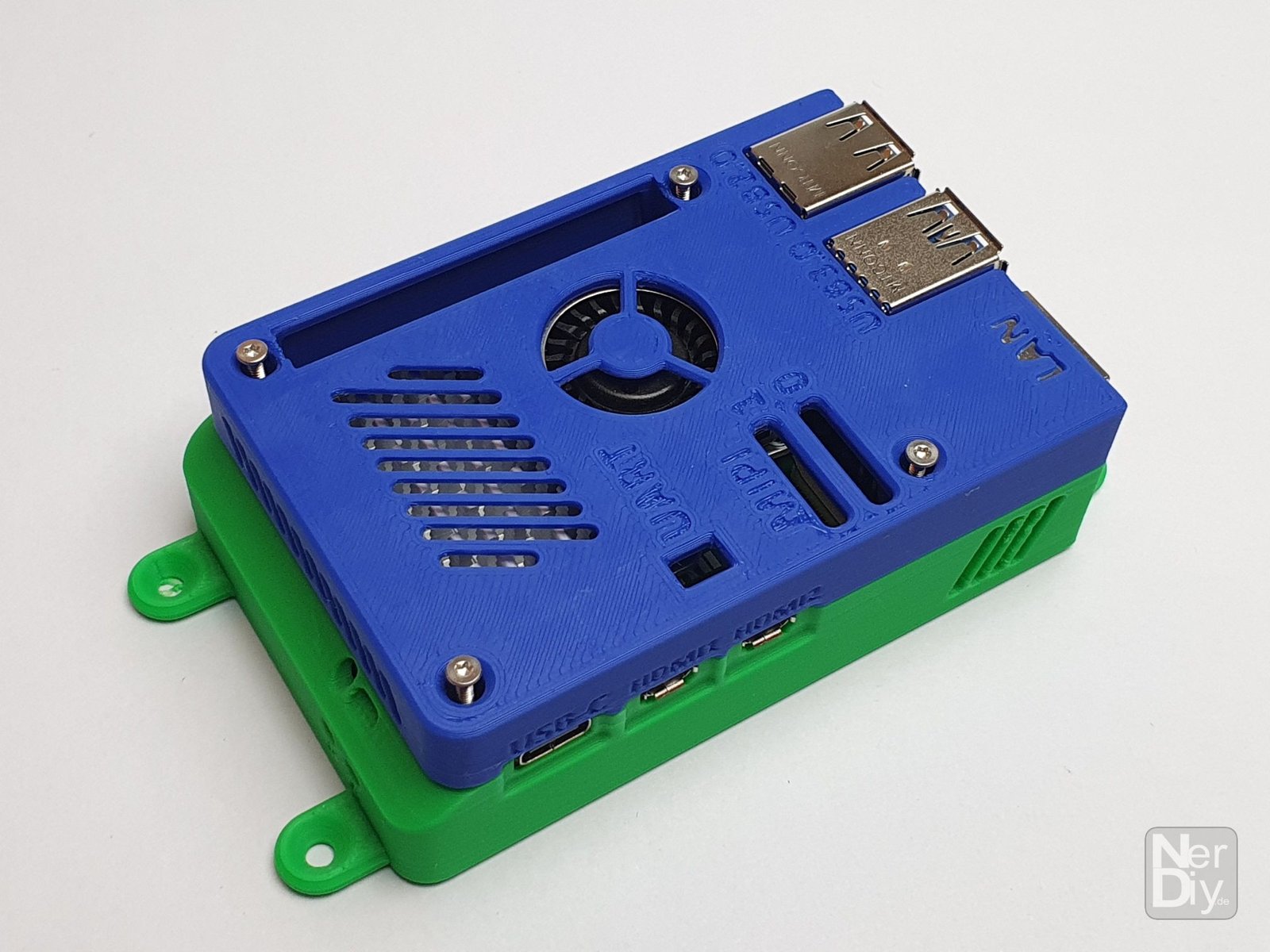

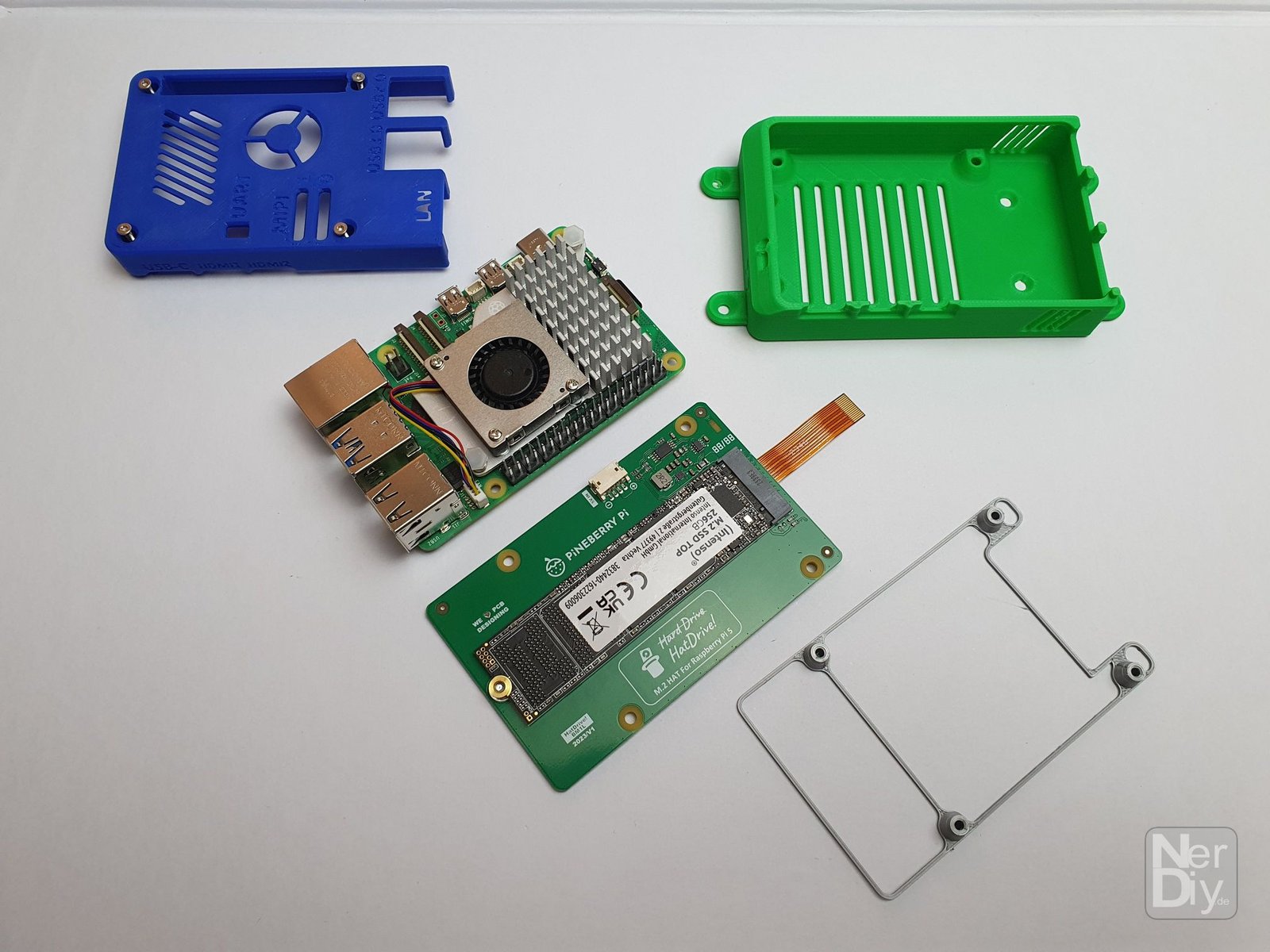

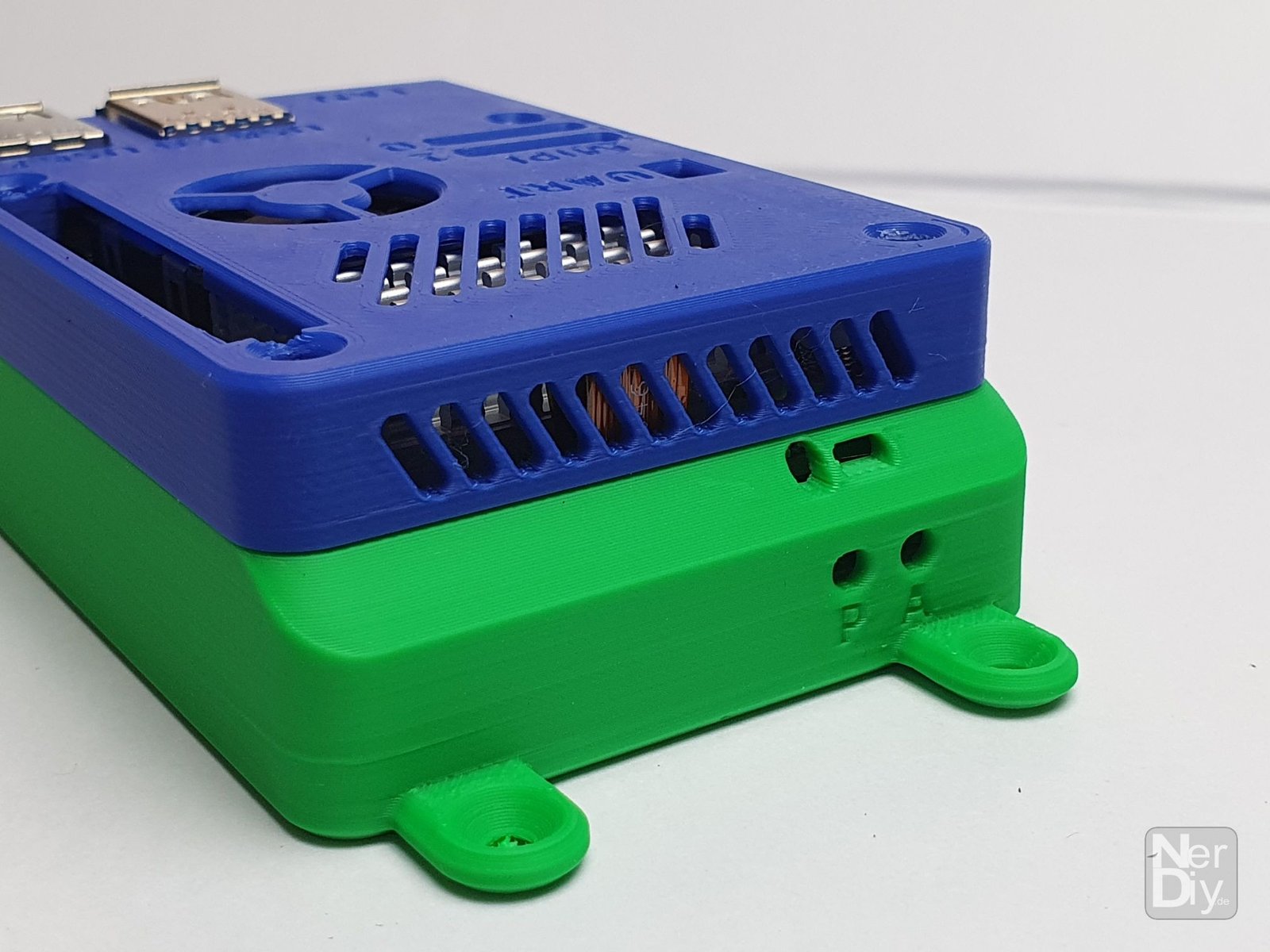

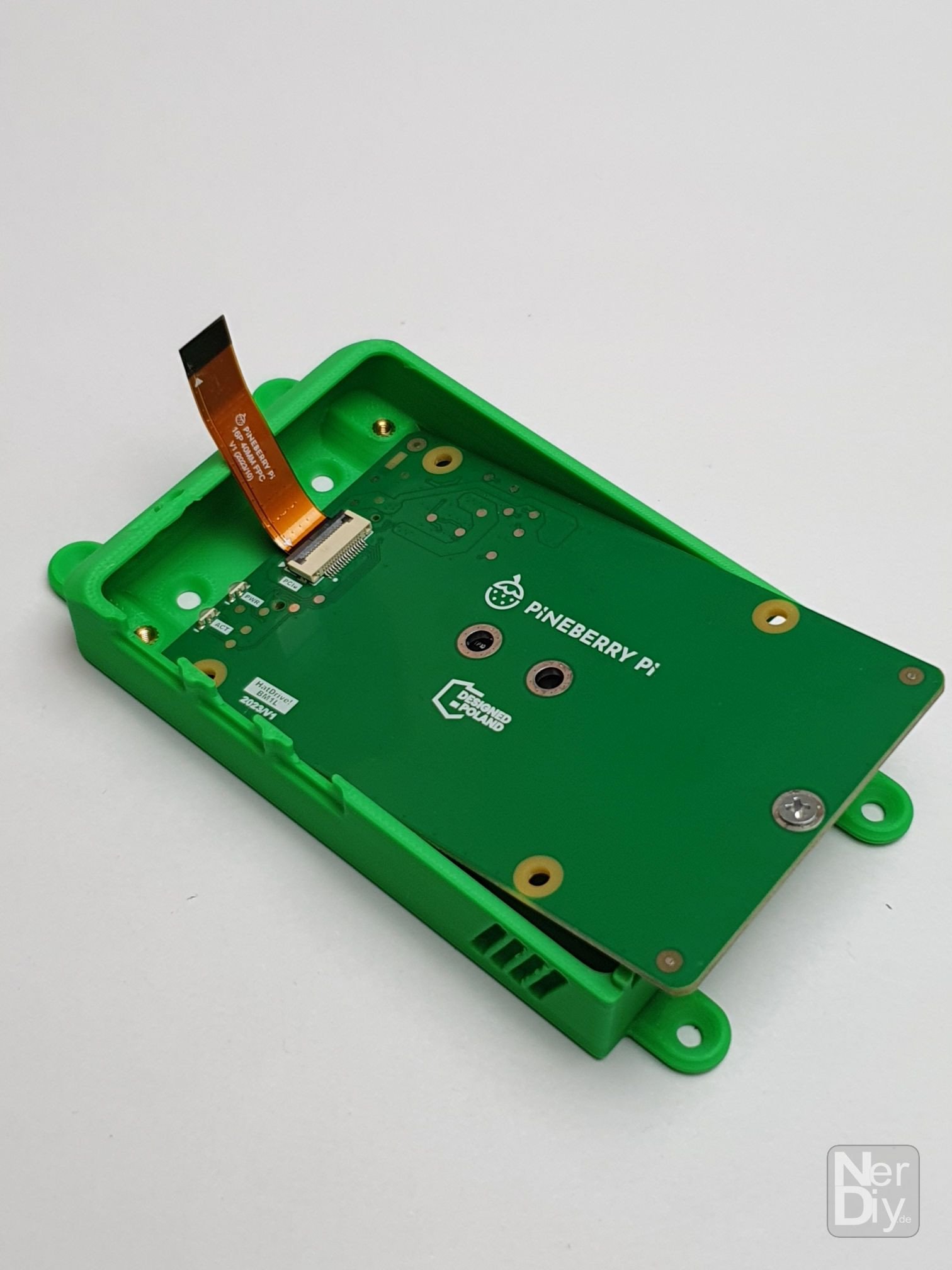

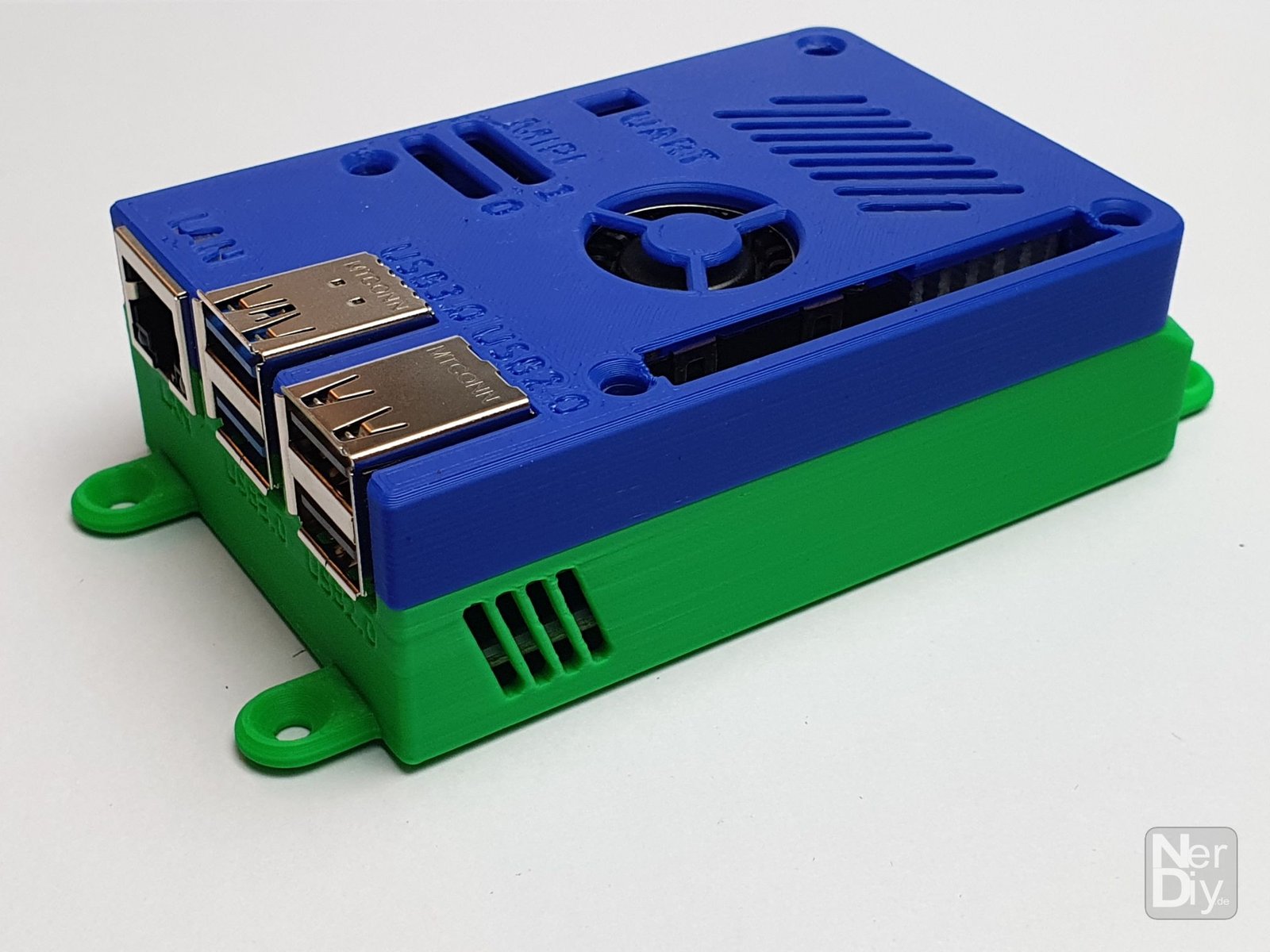

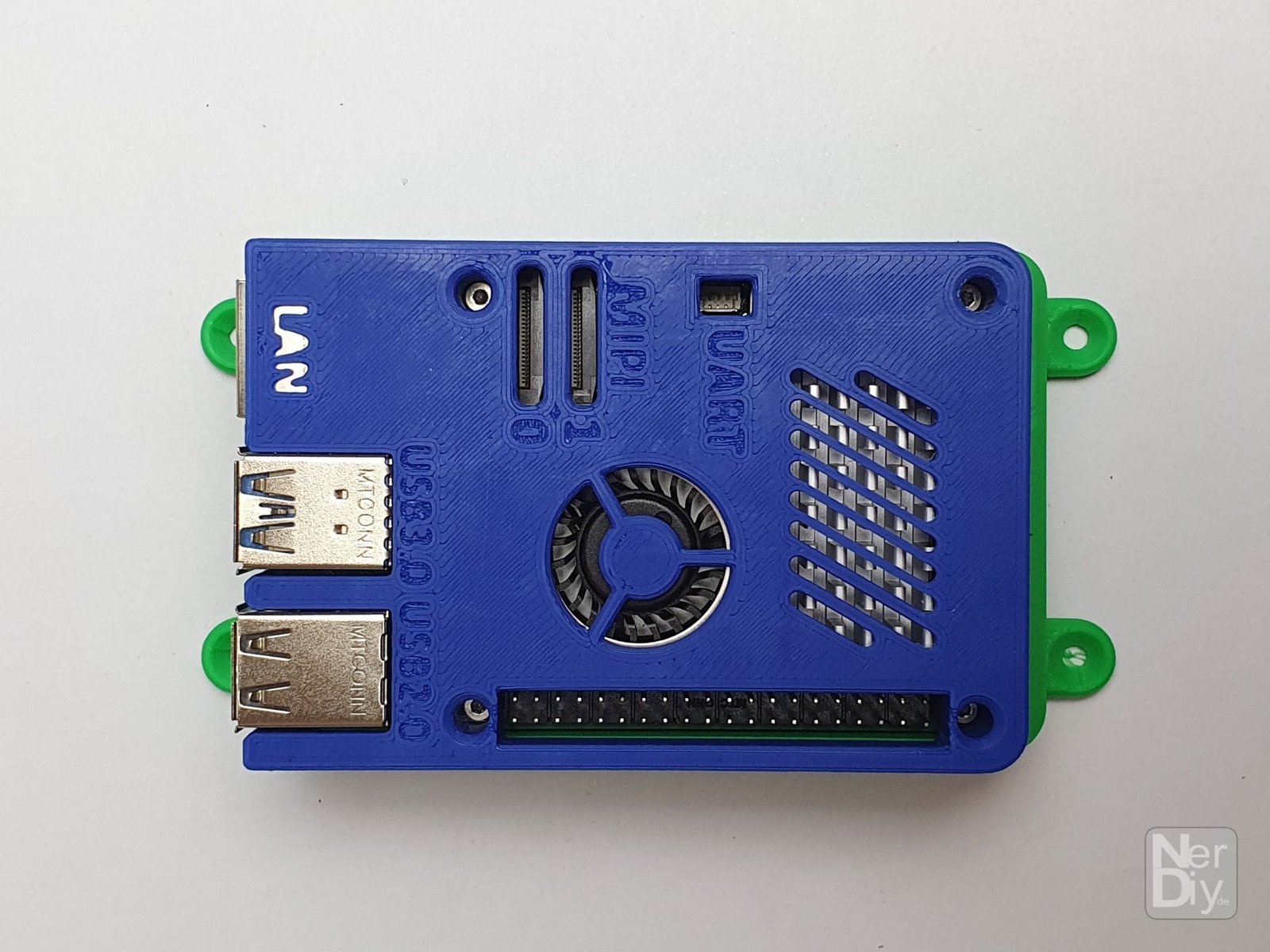

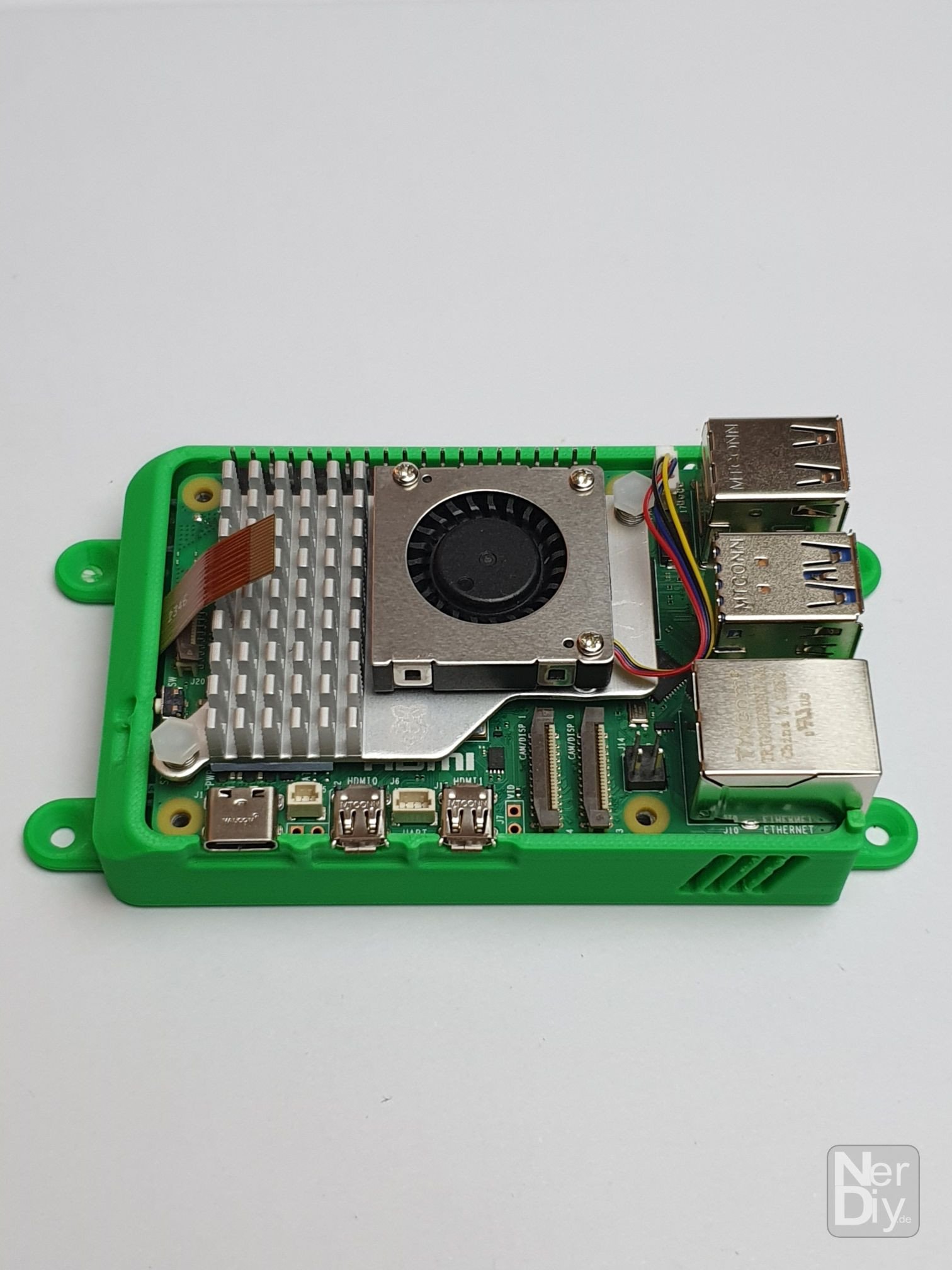

Welcome to our 3D printable case for the HatDrive! BM1L from Pineberry Pi – A compact integration for your NVMe SSD on the Raspberry Pi 5! Give your Raspberry Pi 5 the power and speed of an NVMe SSD with the HatDrive! BM1L PCIe-x1 adapter from Pineberry Pi. Our case was specifically designed to accommodate the HatDrive! Safely and aesthetically integrate BM1L into your Raspberry Pi project.

Are you looking for a housing for the Pineberry Pi HatDrive! TM1S? This way!

Features of the case for HatDrive! BM1L:

  • Precise fit: Carefully designed STL files allow for an optimal fit for the HatDrive! BM1L from Pineberry Pi.
  • Optimized access: The case provides easy access to the HatDrive's ports! BM1L while ensuring efficient heat dissipation.
  • Robust construction: Protect your HatDrive! Pineberry Pi's BM1L features a sturdy case that not only provides security but also improves the aesthetic appearance of your Raspberry Pi project.

Please note: No physical components will be sent. You will receive the files in STL format and must print them out on a 3D printer in order to build the project. This offer contains the STL files you need to print the 3D printable components for the RaspberryPi 5 BM1L NVME case required.

  • You will soon find further information on the assembly and other components required in the assembly article. It will be linked here as soon as it is published.
  • Observe the safety instructions linked below during assembly and use: Click here

Additional components are required to build the complete project. A complete list of the required parts can be found here

Required tool:

Number Link
1x Screwdriver set  Buy at Amazon
1x Soldering iron  Buy at Amazon

Required material:

Number Link

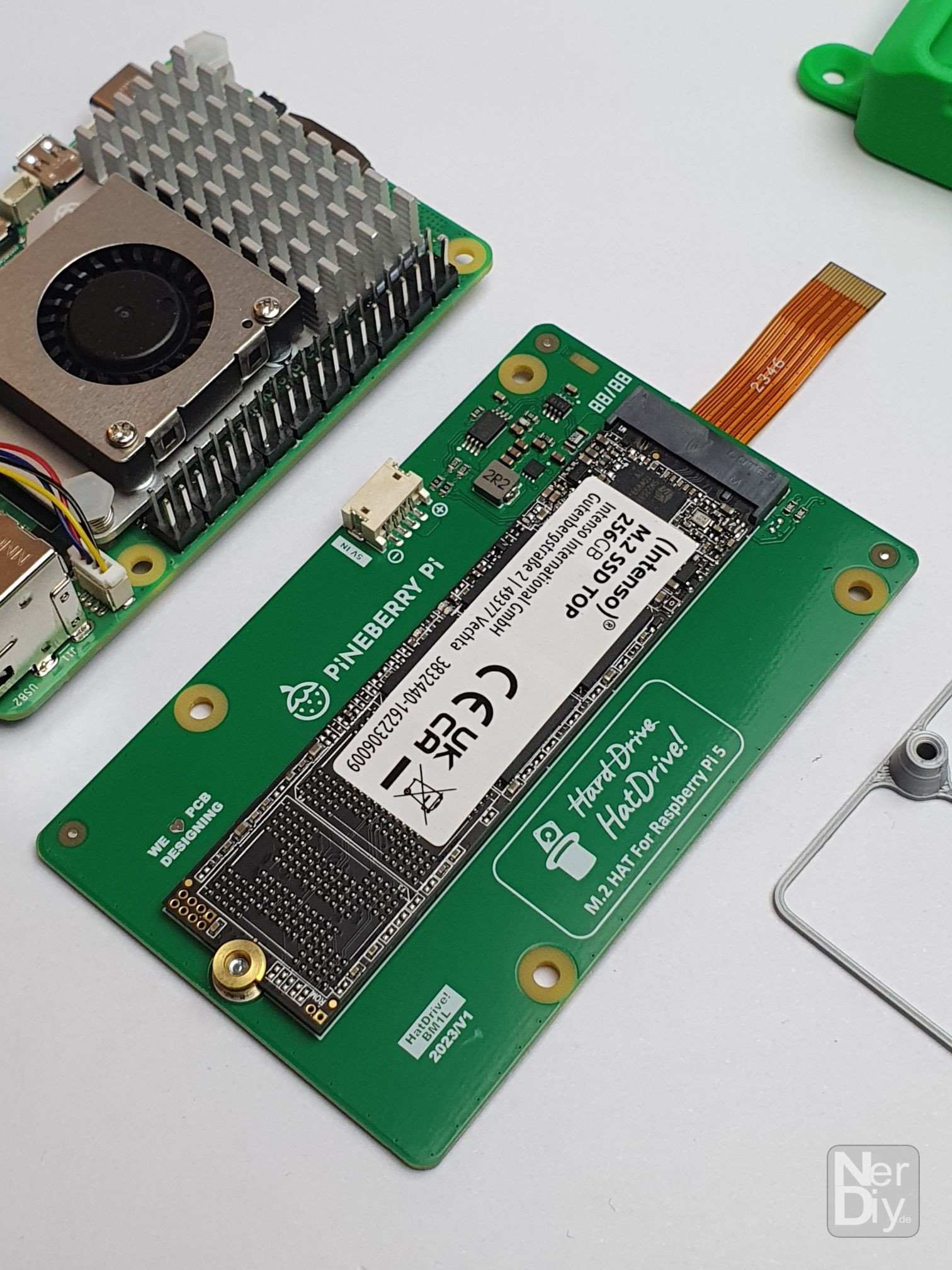

1x Pineberry Pi BM1L NVME HAT
1x Raspberry Pi 5 4GB  Buy at Amazon
1x Raspberry Pi 5 power supply  Buy at Amazon
1x Raspberry Pi case  Buy at Amazon
1x Micro SD card 64GB  Buy at Amazon

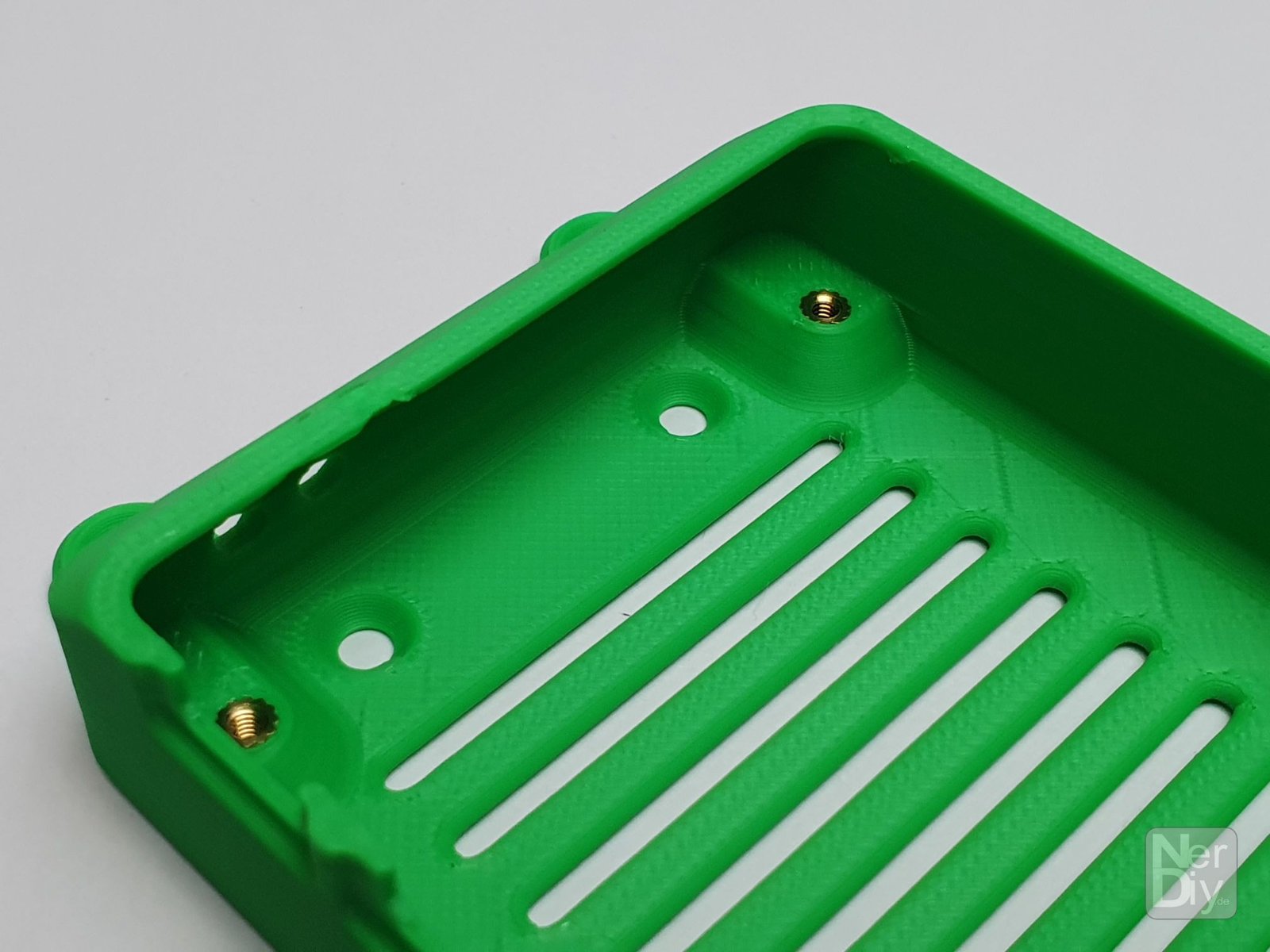

1x M2 thread insert  Buy at Amazon
1x M2x20 countersunk screw  Buy at Amazon



Below you can see an overview of the usual dimensions of the product. If dimensions are missing, please let us know contact form let us know and we will add this later.

File list

  • raspberry_pi_5_top_lid_pineberry_bm1l_X.stl
  • raspberry_pi_5_bottom_pineberry_bm1l_X.stl
  • BM1L_distance_bolts_X.stl
