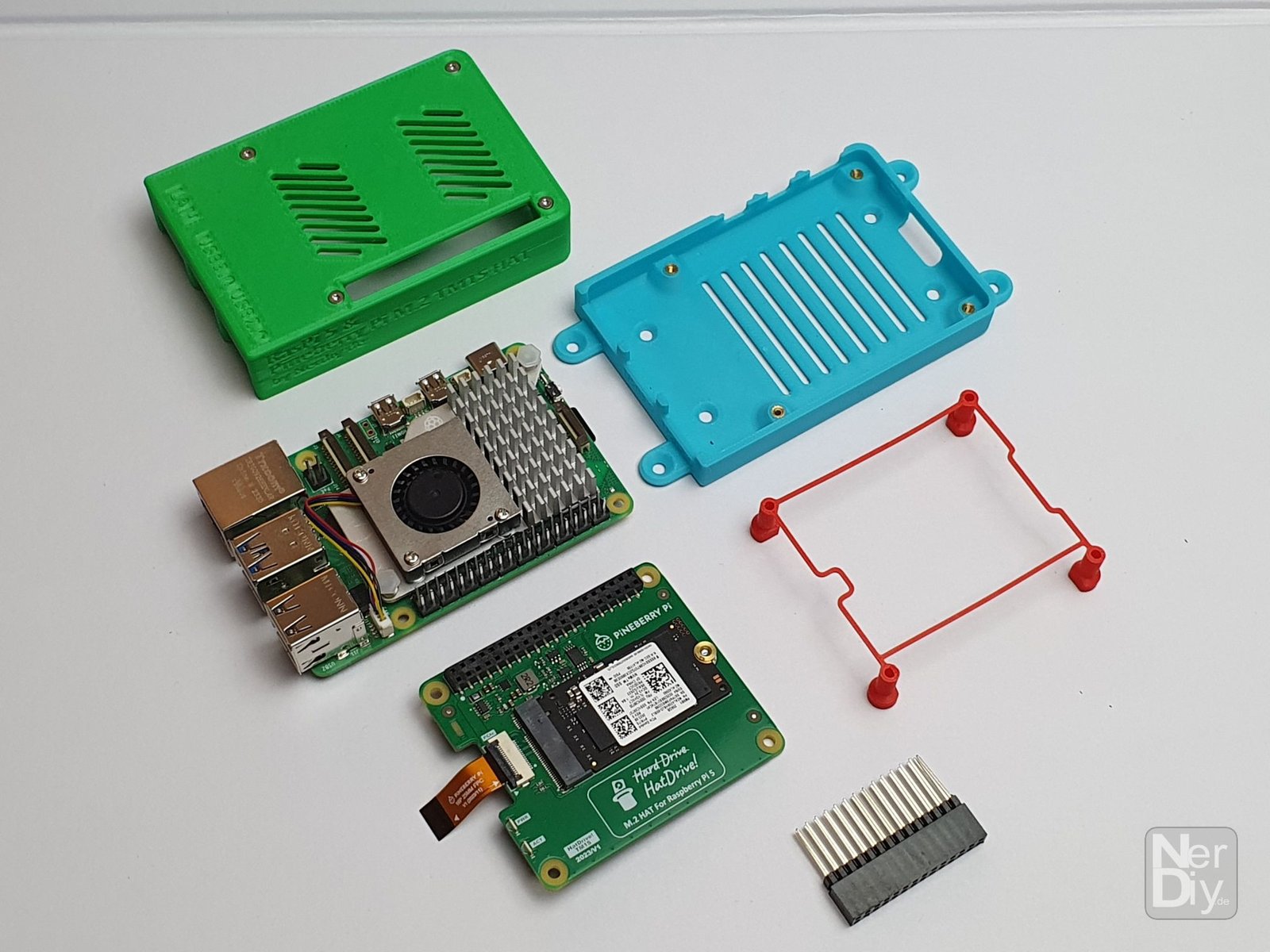

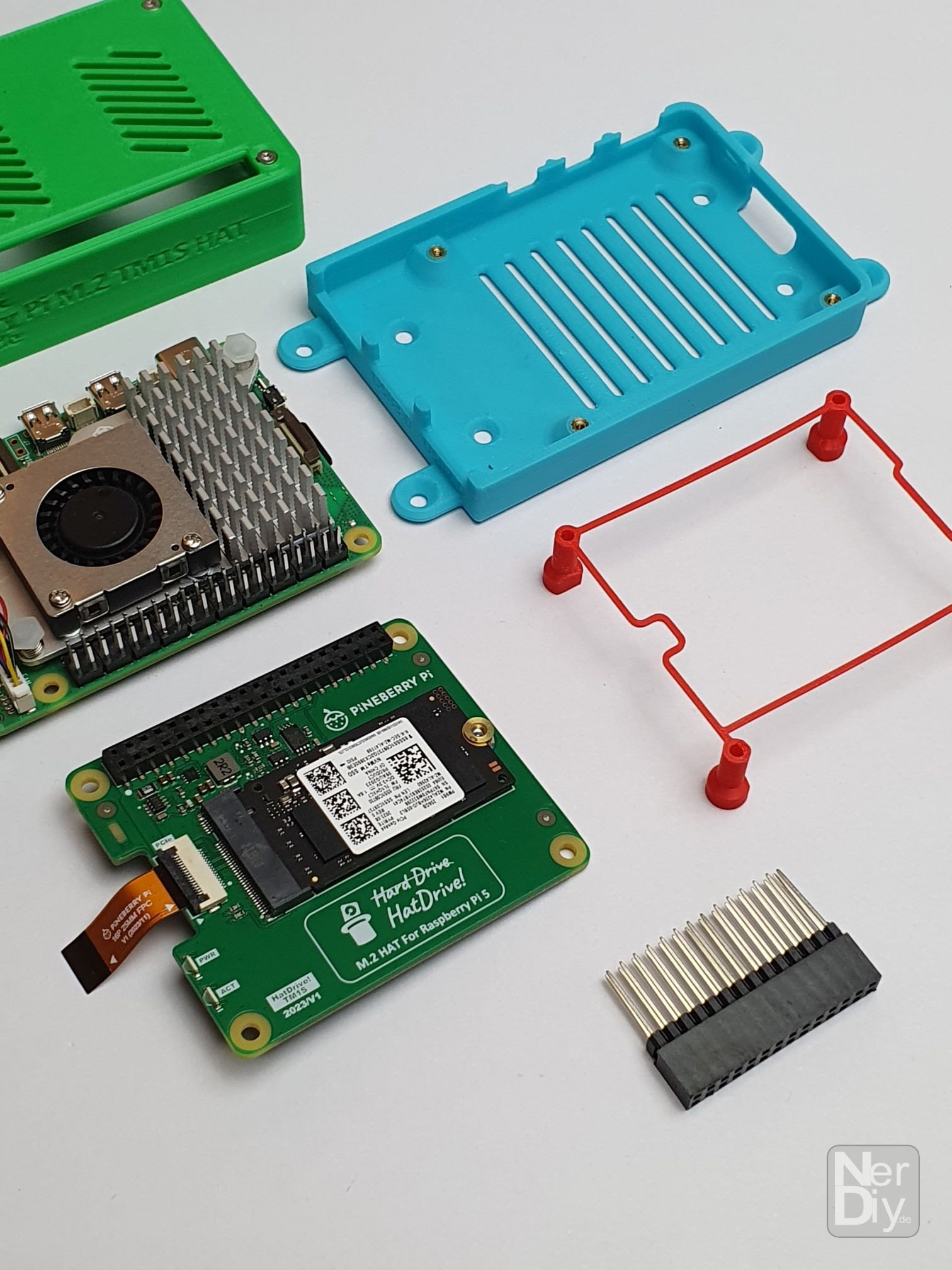

This picture shows an overview of the parts used. It shows the individual housing parts, a Raspberry Pi 5 and the Pineberry Pi NVME HAT.

RaspberryPi 5 & Pineberry Pi TM1S NVME Case – 3D Printable – STL Files

6,99 €

No VAT statement, as small business owner according to §19 (1) UStG.

Categories: ,

Description

Welcome to our 3D printed enclosure for the HatDrive! TM1S by Pineberry Pi - A compact M.2 SSD integration for your Raspberry Pi 5! Attach a 2230 and 2242 M.2 SSD directly to the top of your Raspberry Pi 5 with the HatDrive! TM1S. Our enclosure enables a space-saving and aesthetically pleasing integration of the HatDrive! TM1S without interfering with the cooler on the Raspberry Pi 5.

Are you looking for a housing for the Pineberry Pi HatDrive! BM1L? This way!

Features of the case for HatDrive! TM1S:

  • Precise fit: Carefully designed STL files ensure a precise fit for the HatDrive! Pineberry Pi's TM1S to enable easy integration on the Raspberry Pi 5 top panel.
  • Space saving: The compact housing allows the integration of the HatDrive! TM1S from Pineberry Pi without affecting the Raspberry Pi 5 cooler.
  • Easy access: Cutouts in the case provide easy access to the HatDrive's ports! TM1S for convenient use.

A notice: This product only includes the STL files and the assembly material. HatDrive! TM1S from Pineberry Pi and electronic components are not included. Start your DIY project and integrate the HatDrive! TM1S seamlessly into your Raspberry Pi 5 and give your system extra storage space and speed!

Please note: No physical components will be sent. You will receive the files in STL format and must print them out on a 3D printer in order to build the project.

This offer contains the STL files you need to print the 3D printable components for the RaspberryPi 5 TM1S case required.

  • You will soon find further information on the assembly and other components required in the assembly article. It will be linked here as soon as it is published.
  • Observe the safety instructions linked below during assembly and use: Click here

Additional components are required to build the complete project. A complete list of the required parts can be found here

Required tool:

Number Link
1x Screwdriver set  Buy at Amazon
1x Soldering iron  Buy at Amazon

Required material:

Number Link
1x Pineberry Pi TM1S NVME HAT
1x Raspberry Pi 5 4GB  Buy at Amazon
1x Raspberry Pi 5 power supply  Buy at Amazon
1x Raspberry Pi case  Buy at Amazon
1x Micro SD card 64GB  Buy at Amazon
1x M2 thread insert  Buy at Amazon
1x M2x20 countersunk screw  Buy at Amazon

Gallery

Dimensions

Below you can see an overview of the usual dimensions of the product. If dimensions are missing, please let us know contact form let us know and we will add this later. This is a picture that shows the dimensions of the case sold here.

File list

  • raspberry_pi_5_bottom_pineberry_TM1S_X.stl
  • raspberry_pi_5_top_lid_pineberry_TM1S_X.stl
  • TM1S_distance_bolts_X.stl
