Description
With the two segments that are included in the PrintAirPipe filter set, you can PrintAirPipe System with two different air filters.

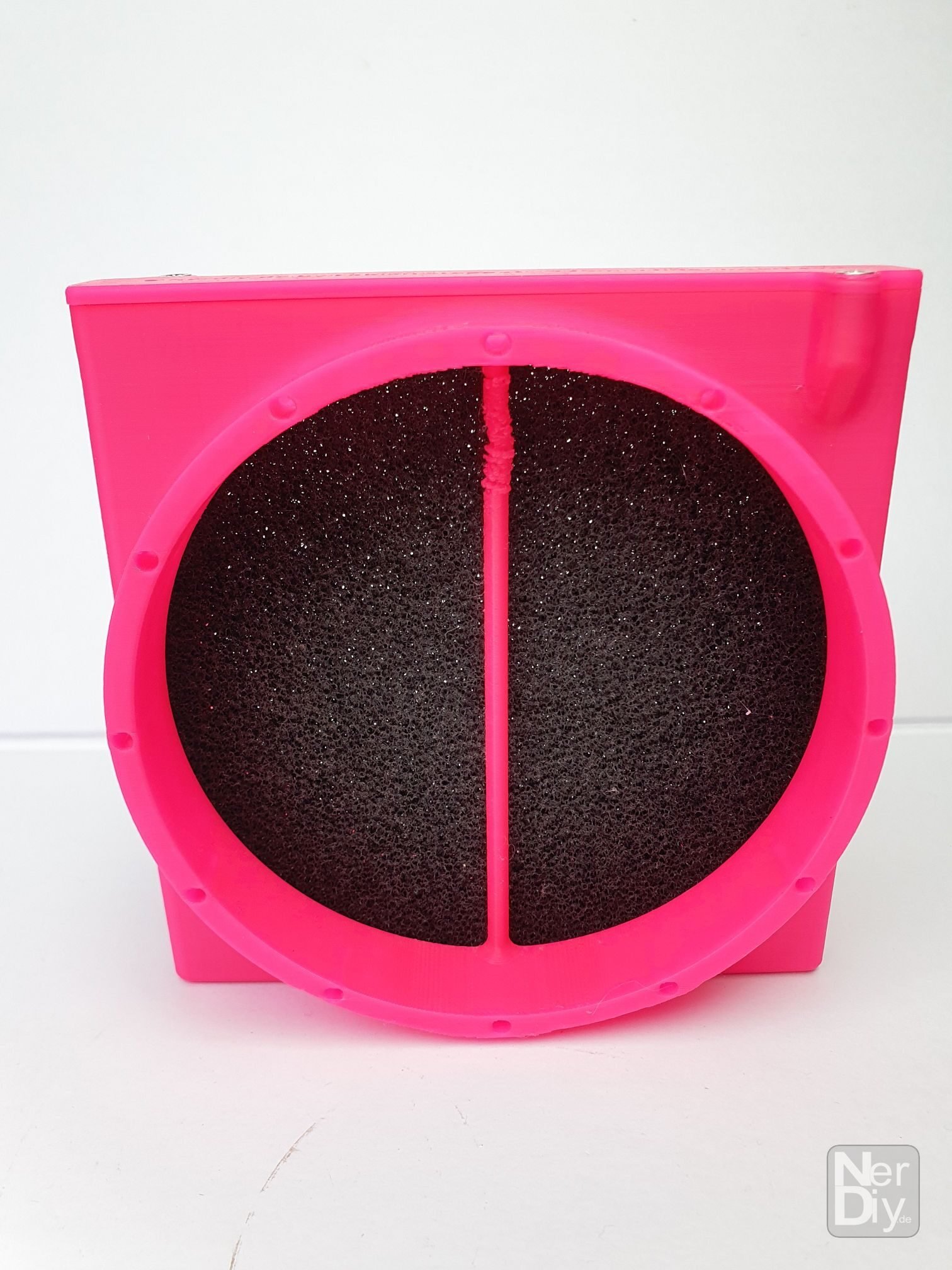

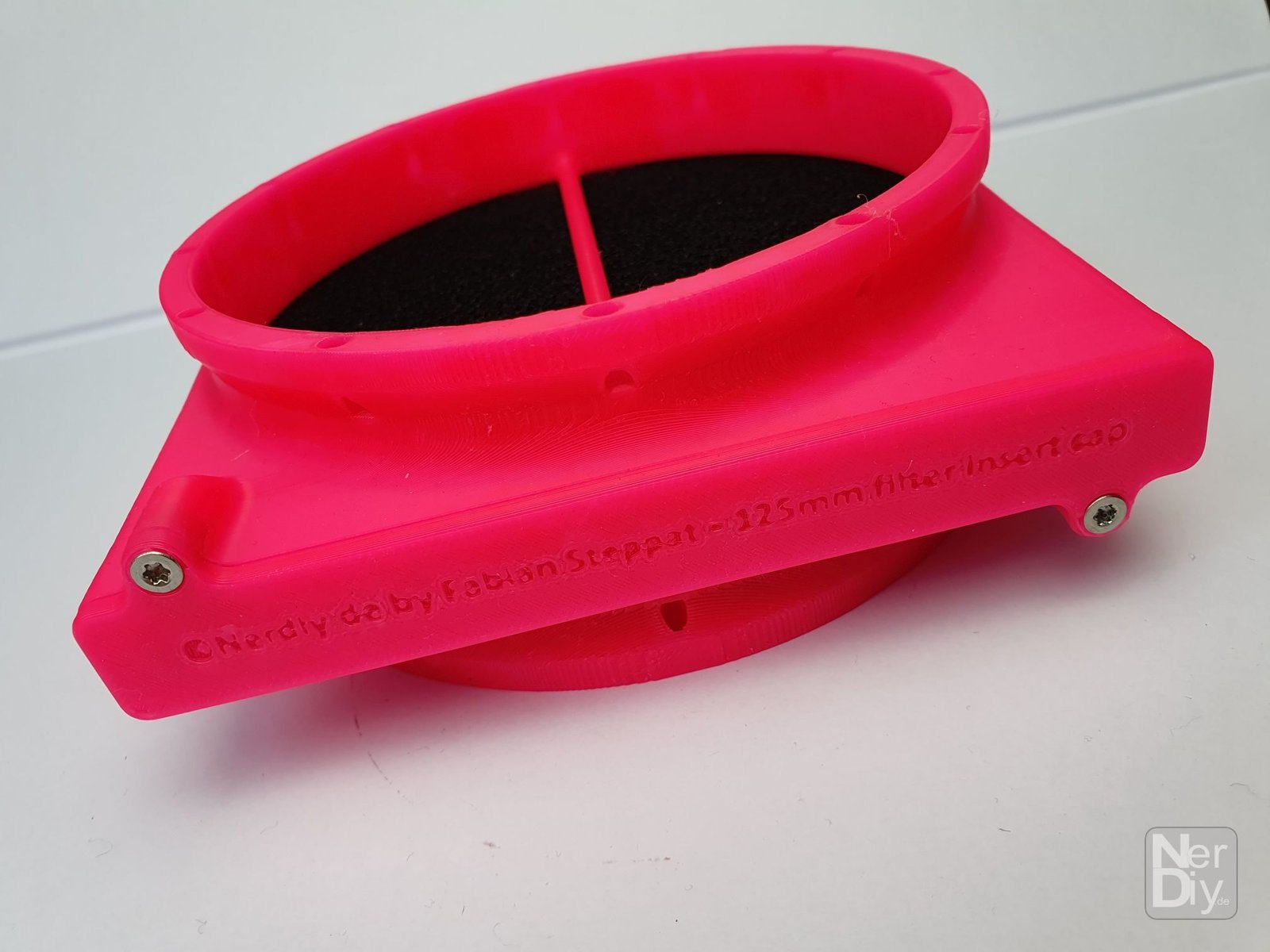

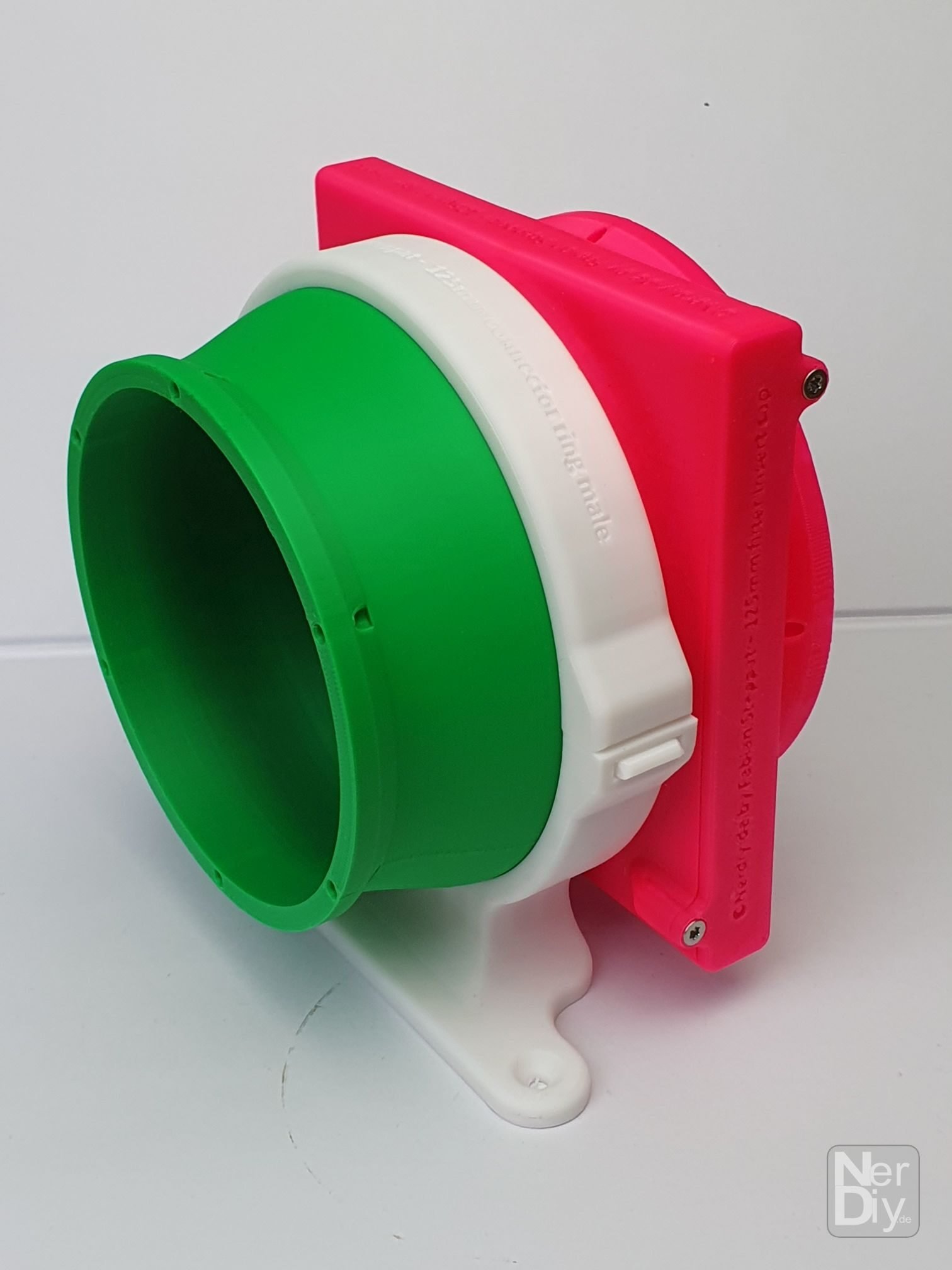

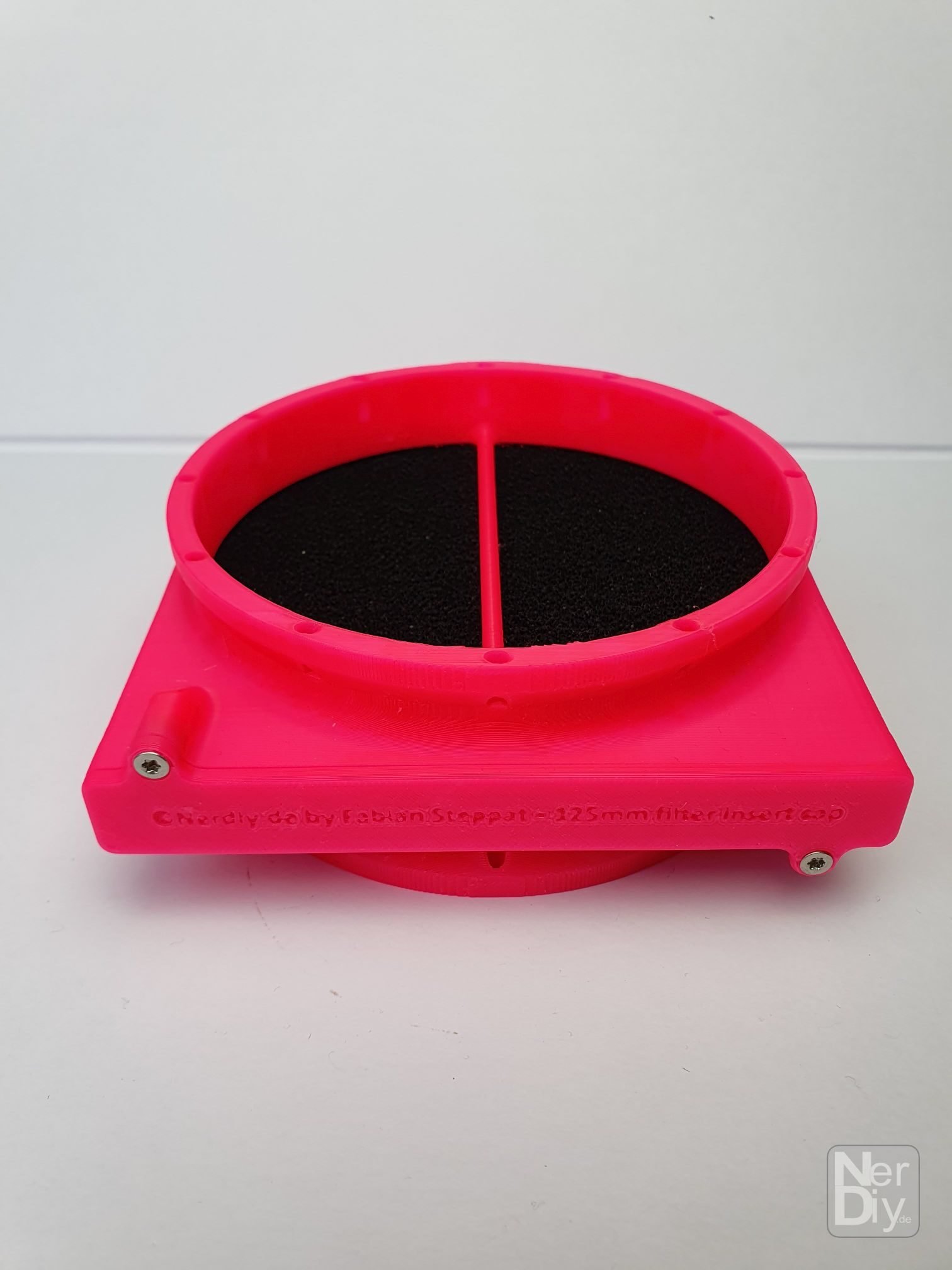

A 10 mm thick activated carbon filter mat can be inserted into the compact segment for 10 mm filter mats. This can be easily replaced even when installed by loosening two screws.

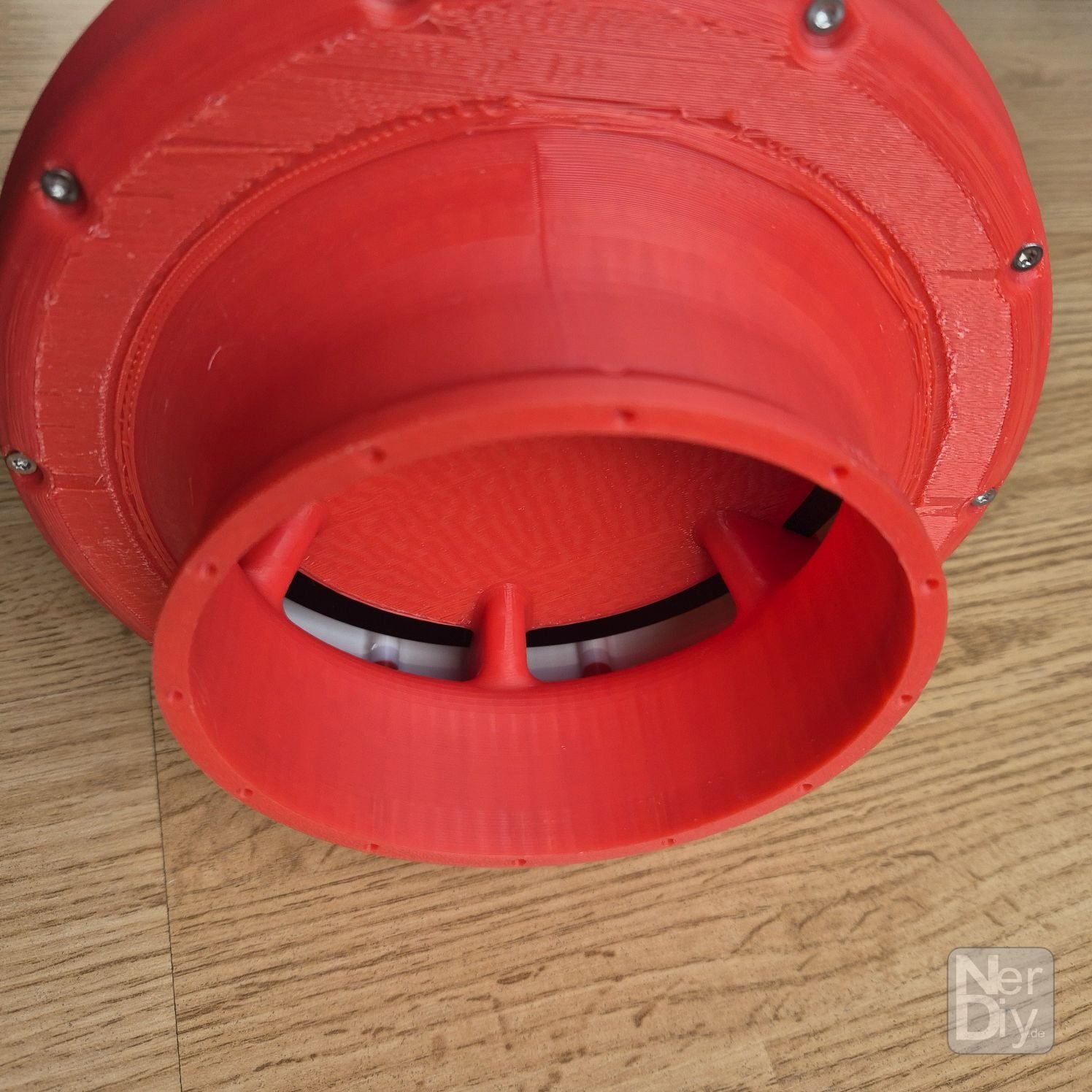

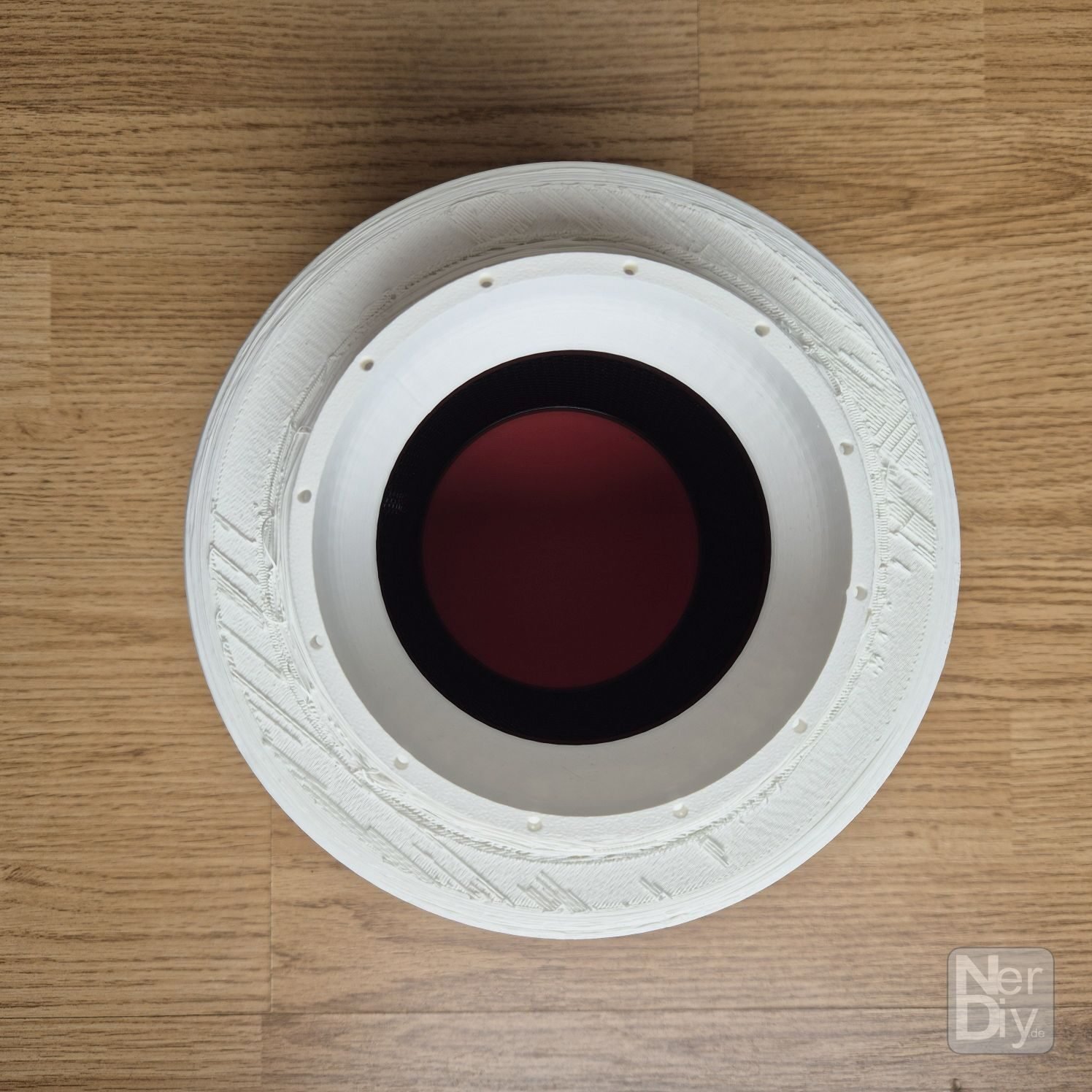

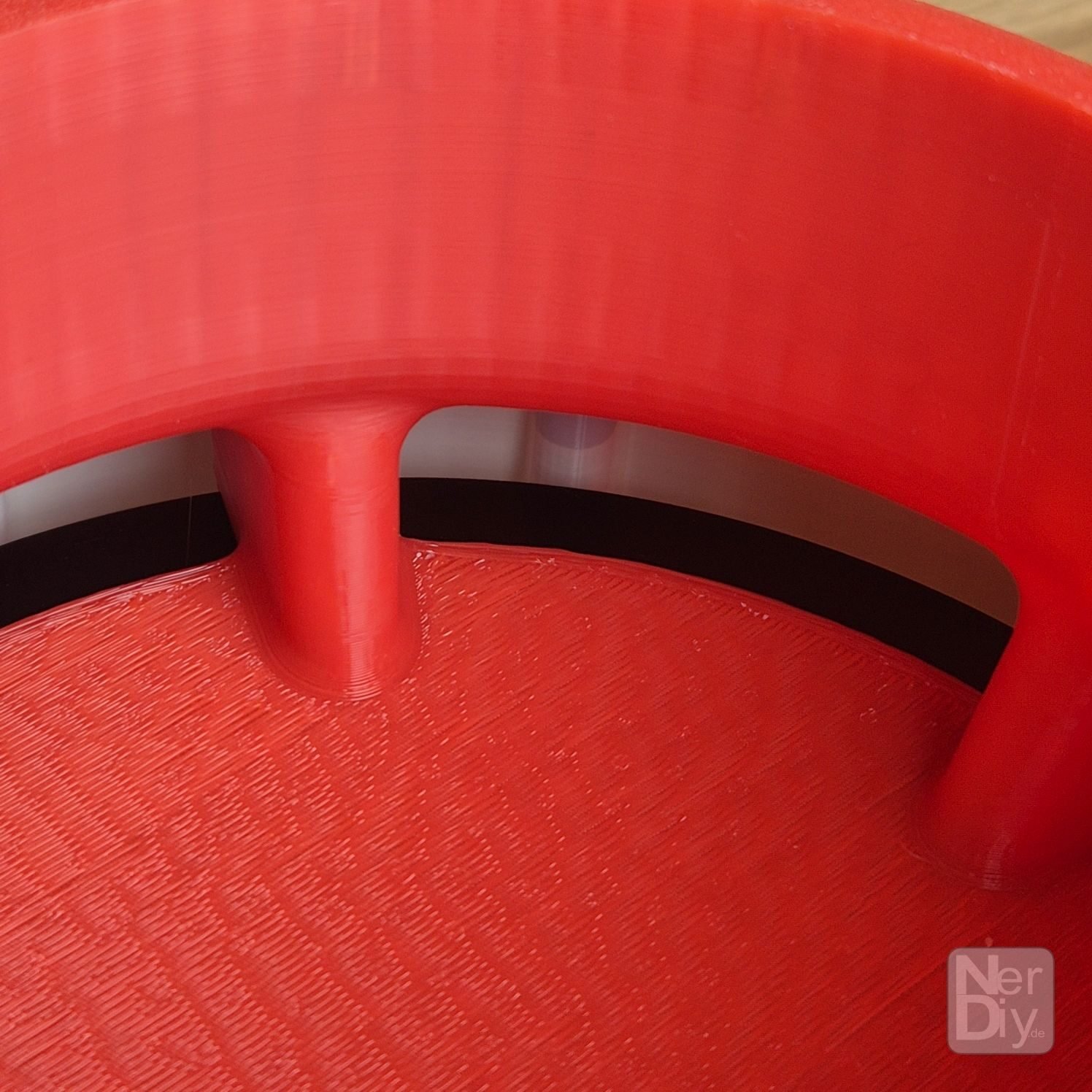

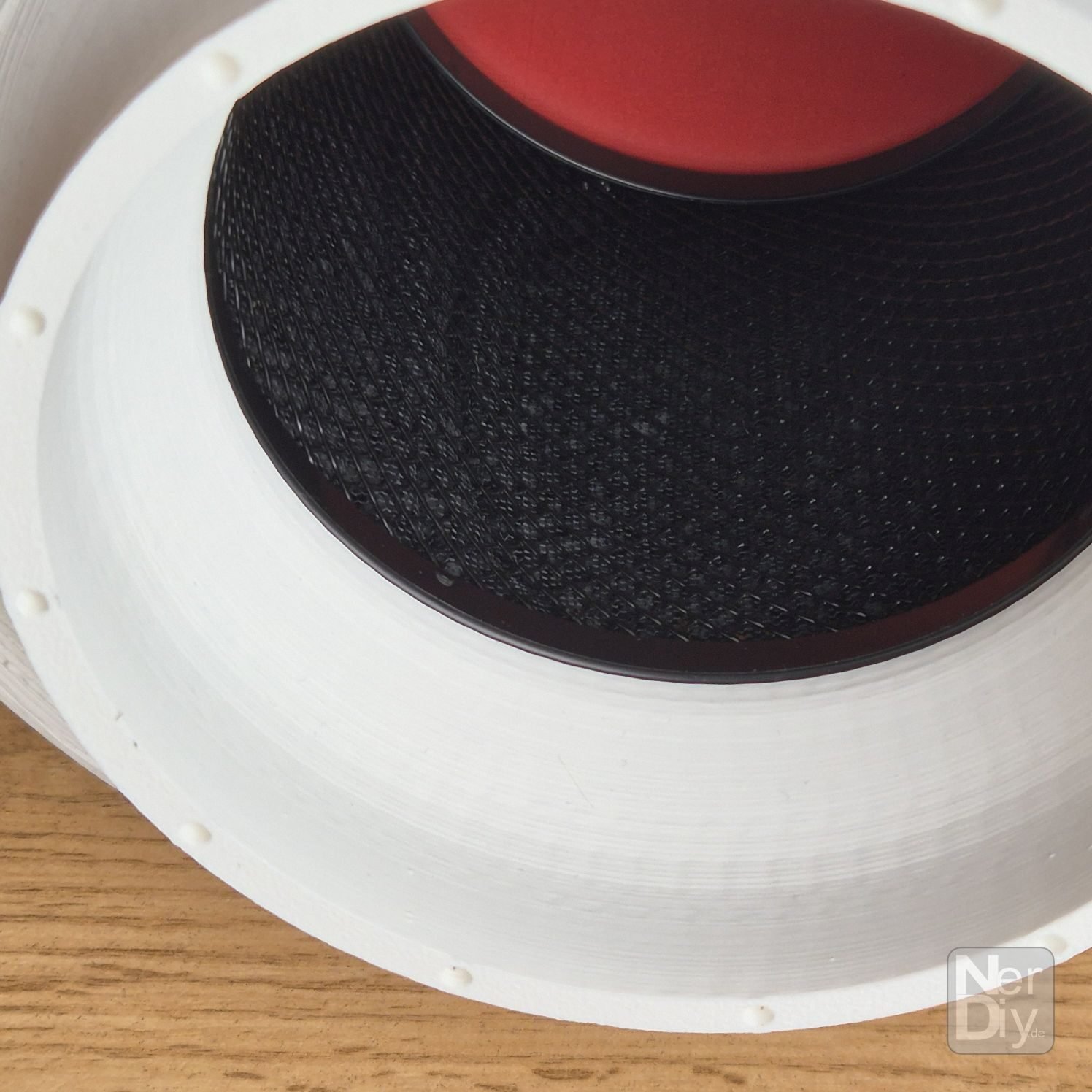

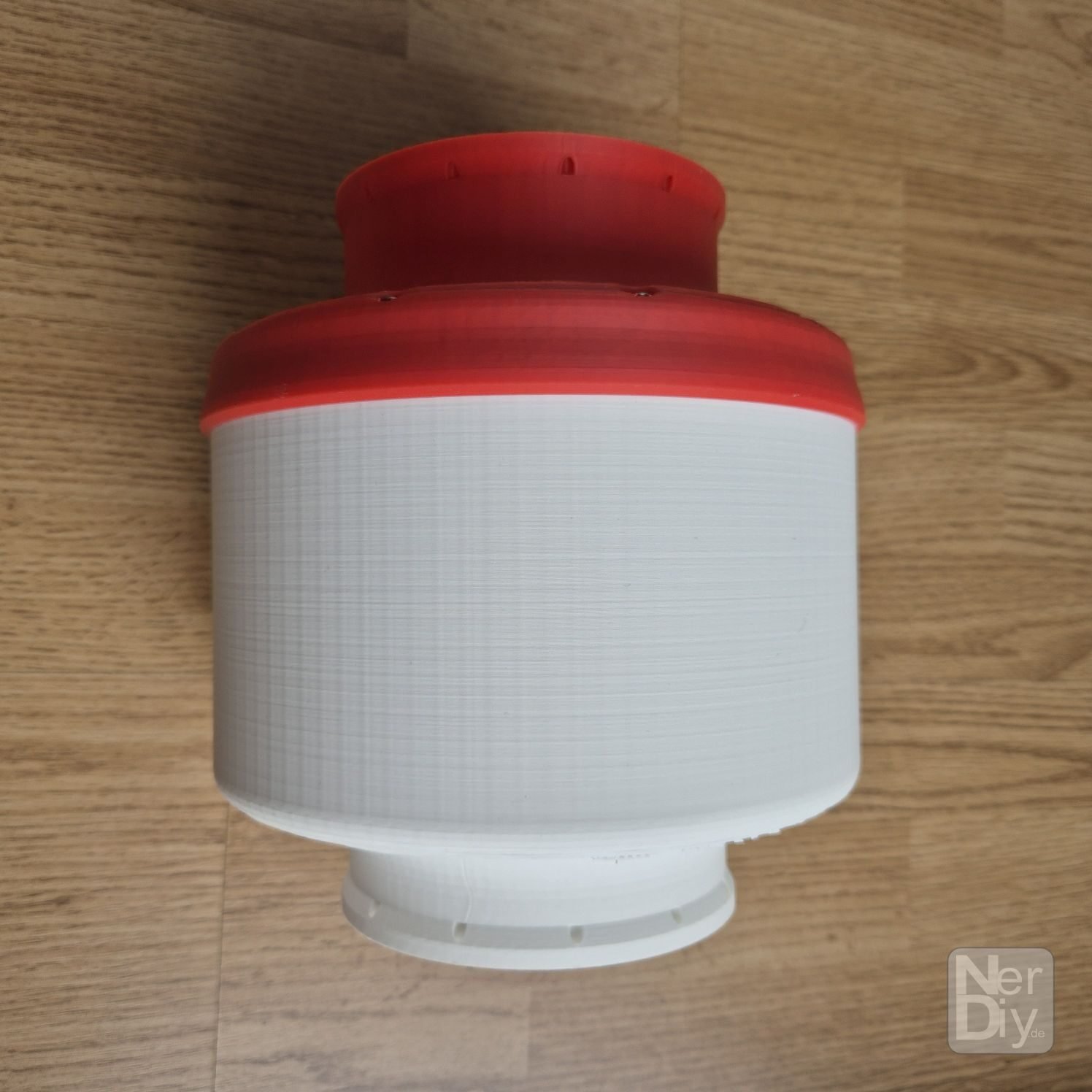

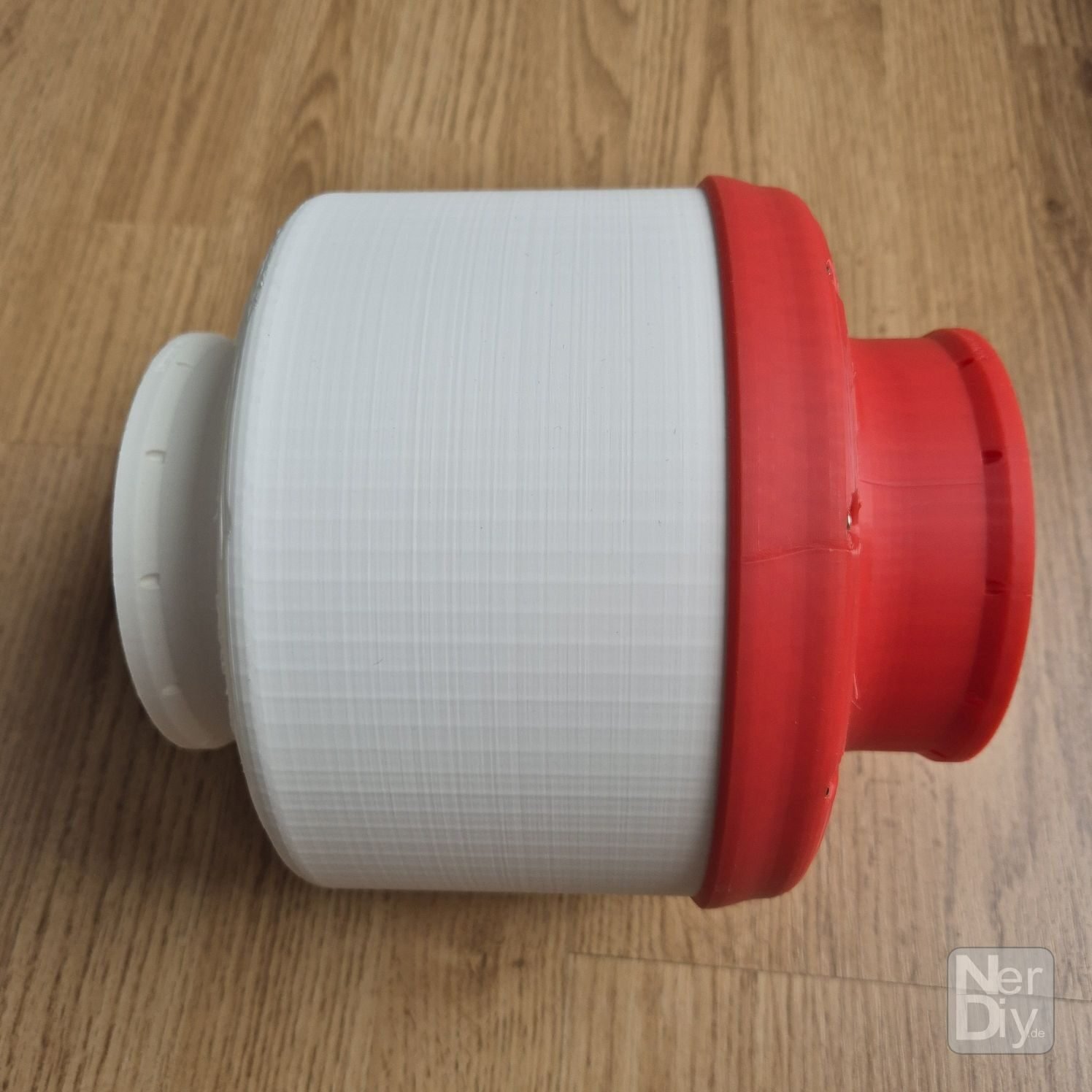

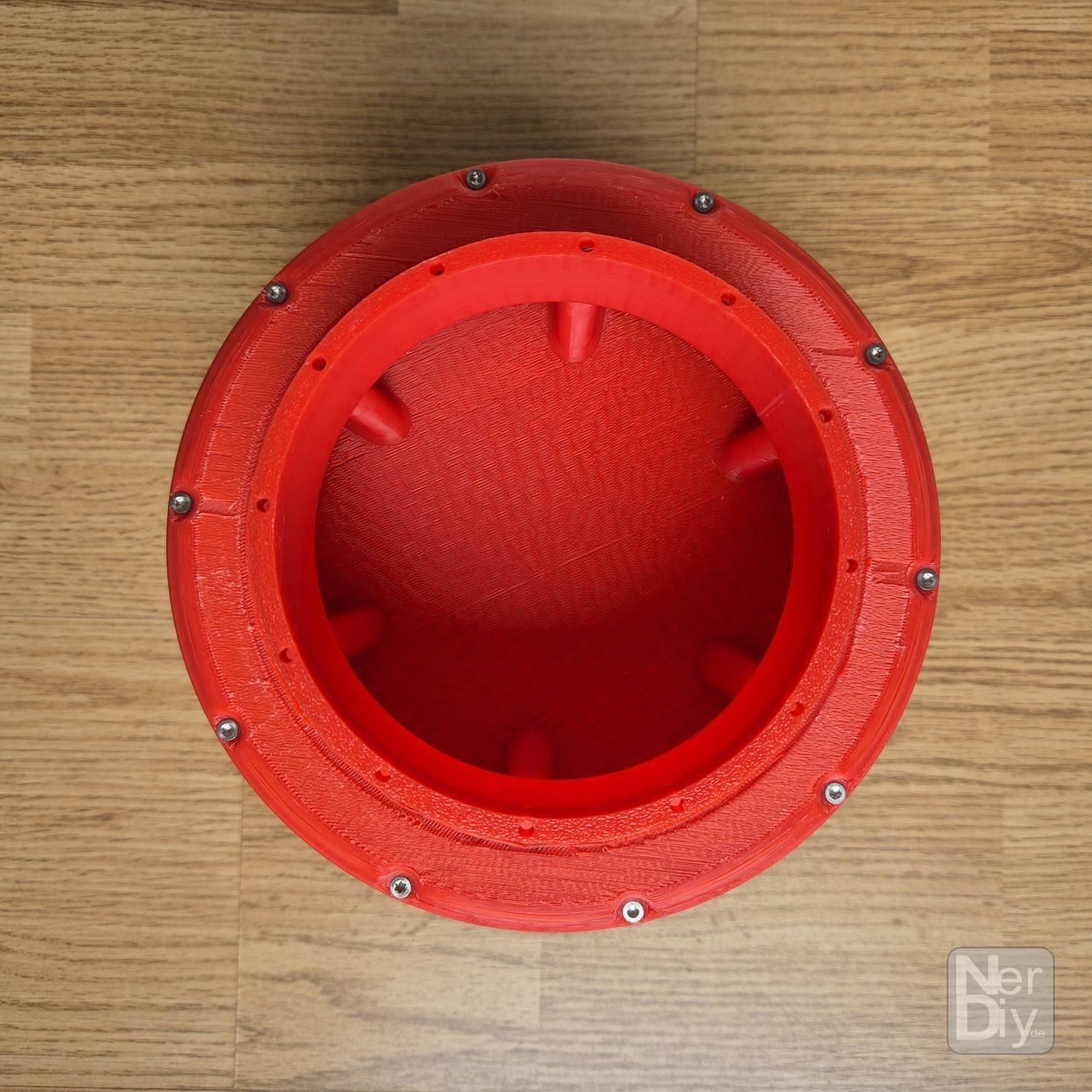

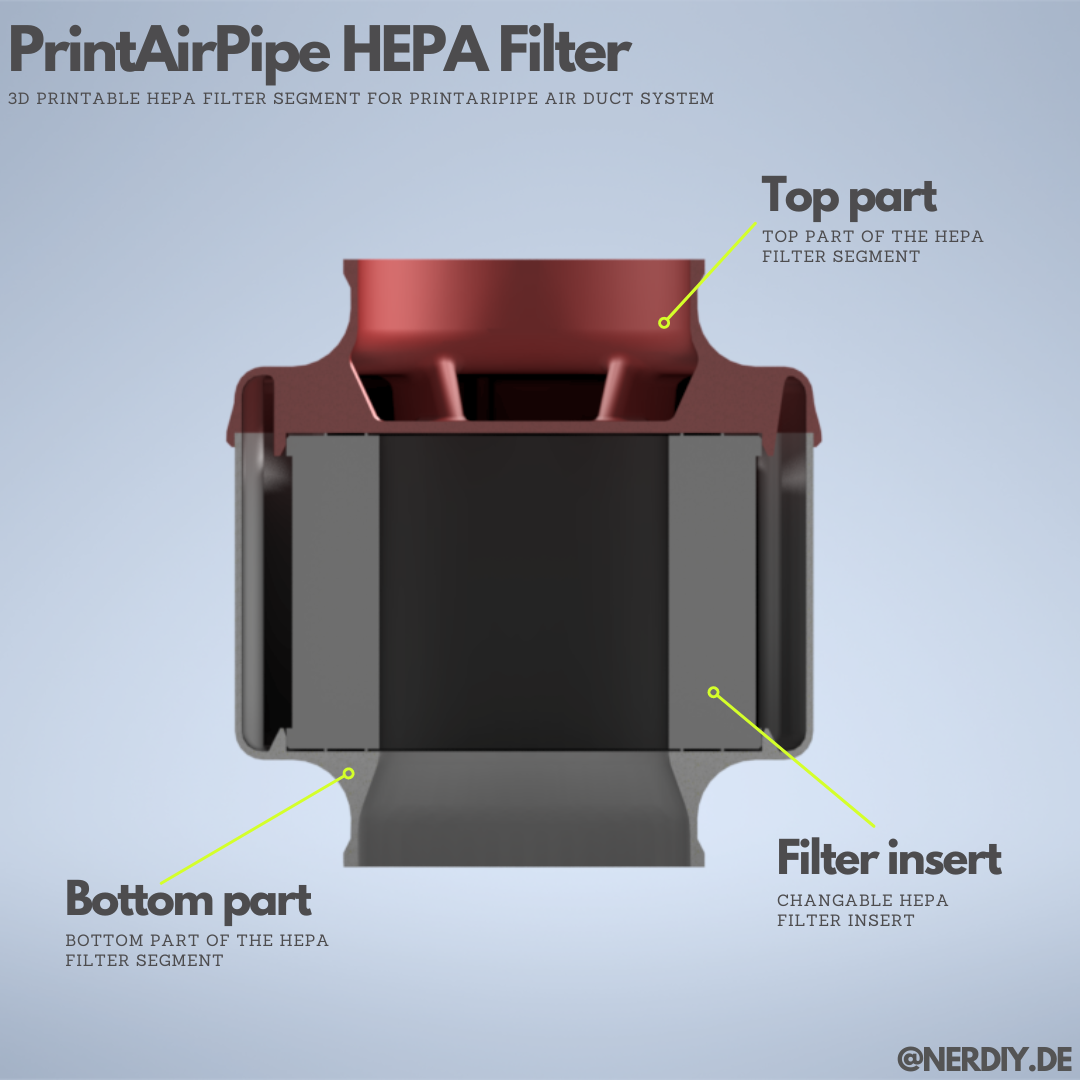

A HEPA filter cassette is inserted into the HEPA filter segment, which contains both a HEPA filter and an activated carbon filter section.
Are you looking for other offers for the PrintAirPipe system?
Under Nerdiy.de/papp you will find all available segments.
Please note: No physical components will be sent. You will receive the files in STL format and must print them out on a 3D printer in order to build the project. This offer contains the STL files you need to print the 3D printable components for the PrintAirPipe - Filter Set required.
- You will soon find further information on the assembly and other components required in the assembly article. It will be linked here as soon as it is published.
- Observe the safety instructions linked below during assembly and use: Click here
Additional components are required to build the complete project. A complete list of the required parts can be found here
Required tool:
| Number | Link |
|---|---|
| 1x | Screwdriver set Buy at Amazon |
| 1x | Soldering iron Buy at Amazon |
| 1x | Prusa 3D printer |
Material required for the filter insert for 10mm filter mat:
| Number | Link |
|---|---|
| 2x | M3x8 countersunk head screw Buy at Amazon |
| 2x | M3 thread insert Buy at Amazon |
| 2x | 10mm activated carbon filter mat Buy at Amazon |
Material required for the HEPA filter insert:
| Number | Link |
|---|---|
| 1x | 3D printing FIlament PETG Buy at Amazon |
| 10x | M3x30 countersunk screw Buy at Amazon |
| 10x | M3 thread insert Buy at Amazon |
| 1x | True HEPA filter cartridge Buy at Amazon |
Gallery
3D printing information
- Filament type: e.g: PLA
- Layer thickness: 0.2mm
- Infill: 15%
- Wall lines: 2
Videos
No videos are available yet.
Dimensions
The following is an overview of the usual dimensions of the various pipe segments. If dimensions are missing, please use the contact form let us know and we will add this later.
Dimensions of the filter insert for 10mm filter mats.
File list
- PrintAirPipe_125mm_filter_insert_cap_X.stl
- PrintAirPipe_125mm_filter_insert_X.stl
- PrintAirPipe_125mm_HEPA_filter_segment_female_X.stl
- PrintAirPipe_125mm_HEPA_filter_segment_lid_part_X.stl
